Ushio America G10T5L 3000338 Low Pressure Mercury Arc UV Lamp, T5 16W, Single Pin Base, 357.0mm, 253.7nm UV-C
1 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 16 Watts

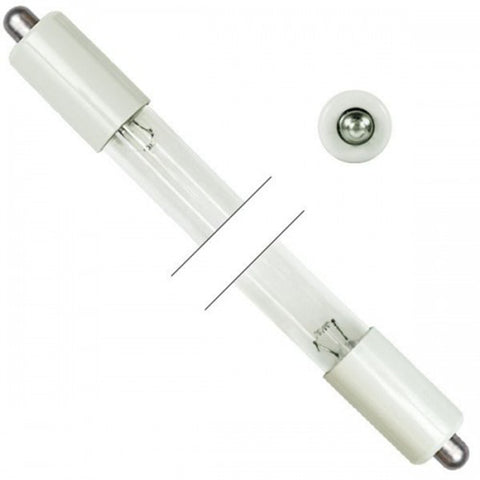

Ushio America G10T5L low pressure UV lamp
Ordering code 3000338 • T5 16W • Single Pin base • 15.5mm x 357.0mm • 253.7nm UV-C peak
Professional Low Pressure UV-C Lamp
Component lamp for compatible professional UV systems used in listed applications including drinking water, wastewater, clean room, research, food processing and air conditioning systems.
Key Benefits
Specified UV-C Peak
Spectral peak of 253.7nm with listed UV output of 5.3W.
Professional Fit
T5 tube with Single Pin base, 15.5mm diameter and 357.0mm length.
Electrical Specs
Rated at 16W, 55V and 0.425A according to the provided specifications.
Average Rated Life
Average life of 9,000 hours under stated laboratory test conditions.
Specifications
| Specification | Details |
|---|---|
| Brand | Ushio America |
| Ordering Code | 3000338 |
| Lamp Description | G10T5L |
| Tube Type | T5 |
| Base | Single Pin |
| Watts | 16W |
| Voltage / Current | 55V / 0.425A |
| Dimensions | 15.5mm diameter x 357.0mm length |
| Spectral Peak / UV Output | 253.7nm / 5.3W |
| Average Life | 9,000 hours |
| UPC / Weight / Price | Not provided |
What's In The Box
- Not provided in the product data
Why Choose This Product
- Ushio America low pressure UV-C lamp
- 253.7nm spectral peak for compatible professional UV systems
- High purity lamp construction listed for the lamp family
- Average life and output measured under stated laboratory conditions
- For professional use only and must be shielded from direct exposure
Product Gallery
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
