Jaspertronics™ 24W 254nm Germicidal U62 UVC HVAC Purification Lamp with Duct Disinfection
9 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 0 Lumens
- 8000 Hours
- 24 Watts

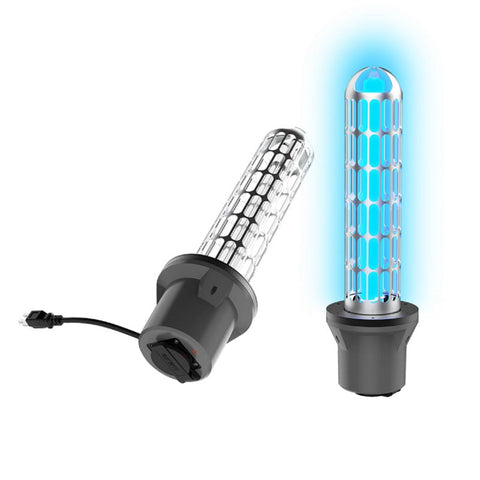

The U62 HVAC Purification Lamp is expertly designed for ventilation duct purification, ensuring air is cleansed before entering your space. Featuring a 254nm high-power UVC quartz lamp, it delivers 360° bacteria-killing efficiency while remaining completely safe, as the UVC irradiation is confined within the duct. Operating at 24W with a 100-277V input, this lamp supports human and machine coexistence without UV leakage. It offers convenient series connection, replaceable UVC lamp tubes, and an indicator light for status monitoring. With a service life exceeding 8,000 hours, it provides reliable and effective air purification.
Applications
- Office Buildings
- Hospital / Health Care Facilities
- Gymnasiums
- Schools / Universities
- Residential / Hotels
- Supermarkets / Retail Environments
- Restaurants / Entertainment Centers
- Industrial / Factory
- Laboratory / Research Facility
- Specialized Ventilation Purification: Designed specifically for purifying air in ventilation ducts, ensuring clean air flows into rooms.
- Safe UVC Irradiation: The UVC component is confined within the duct, making it completely safe for human exposure while effectively killing bacteria.
- Wide Application Range: Suitable for office buildings, healthcare facilities, gyms, schools, hotels, supermarkets, restaurants, factories, and research labs.
- Reliable and Safe Operation: UVC lamps operate in a closed HVAC space without UV radiation leakage, ensuring safety for humans, animals, and plants.
- 360° Ultraviolet Purification: Built-in 254nm UVC quartz lamp offers all-around radiation and purification.

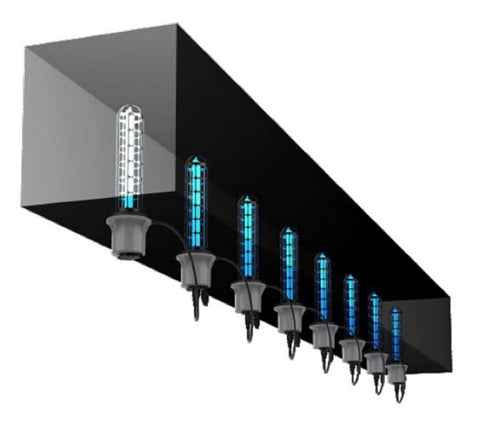

- Convenient Series Connection: Lamps can be wired in series with up to 25 connected, allowing easy replacement of the UVC tube.
- Status Indicator Light: An indicator light changes from green to red if the lamp is damaged or has poor electrical contact, ensuring easy maintenance and safety.
- Long Service Life: With a lifespan exceeding 8,000 hours, it provides reliable and effective air purification.
24W U62 HVAC Purification Lamp with UVC Duct Disinfection
Lamp Specifications |
|
|---|---|
| Specifications | Data |
| Product Code | U62-024W-01 |
| Lamp Type | UVC |
| Lamp Base | 24W H-type quartz purification lamp tube |
| Plug Type | American Standard |
| Wavelength | 254 nm |
| Wattage | 24W |
| Voltage | 100-277V AC |
| Irradiation Intensity | 46.47μW/cm² (Environmental temperature 25℃） |

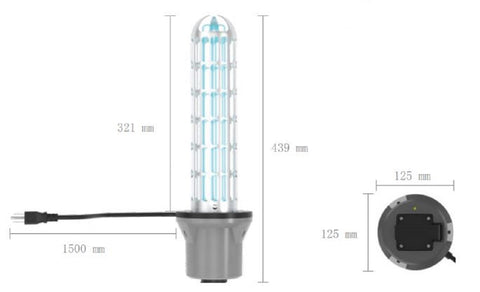

| Dimensions | 125mm * 125mm * 439mm |
| Cord Length | 1.5 meters |
| Life span | 8000 H |
| Warranty | 1 Year Warranty |
 |
 |
 |
 |
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the U62-024W-01 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
