• $ 799.99
• Save $ 700.00

---

Default Title - $ 799.99 USD Quantity Add to Cart

---

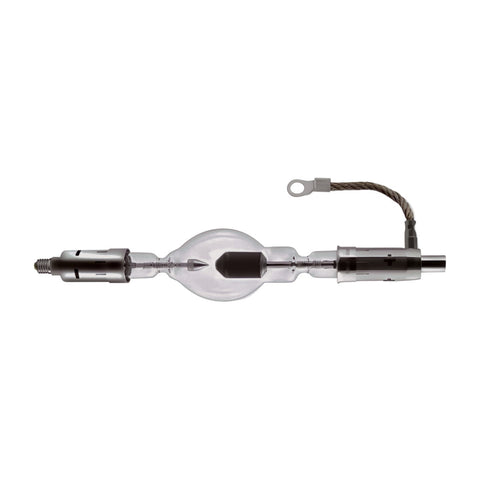

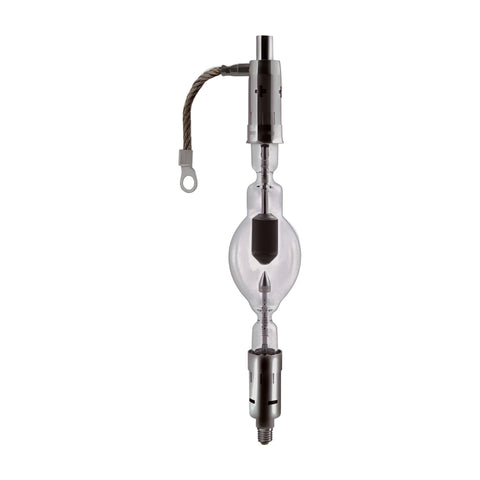

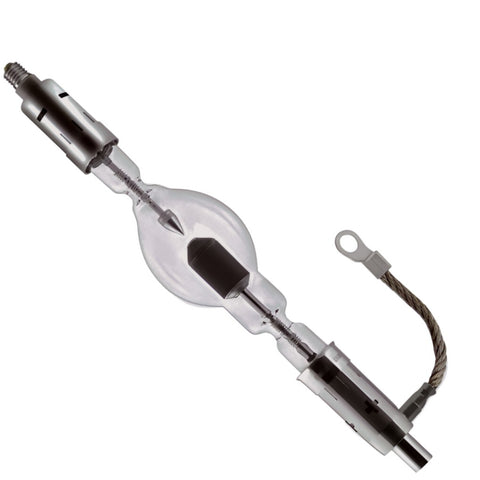

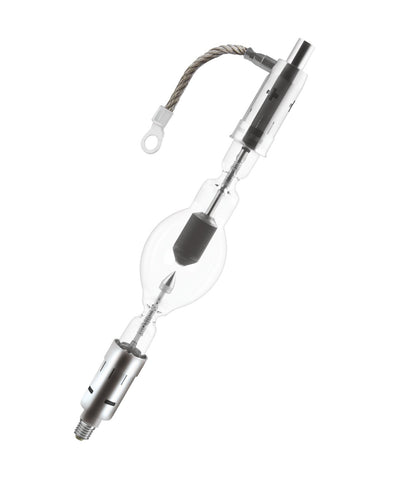

Important Specs 3000 Watts OSRAM XBO 3000W/DHP OFR Xenon Cinema Lamp (69480) 3000W DC xenon short-arc lamp for select Barco digital cinema projectors High-brightness OSRAM XBO lamp with 135,000 lm nominal luminous flux, engineered for stable DC operation and cinema-grade performance. High Brightness OutputNominal luminous flux of 135,000 lm for powerful cinema projection. Stable DC Electrical Profile3000W, 29V, 105A nominal with 77–113A current control range. Optical Alignment Geometry123.0 mm LCL and 4.5 mm electrode gap (cold) support correct focus and alignment. Designed for Booth OperationForced cooling and s15/p15 burning position (vertical: anode (+) on top). Service Life Rating1500 hr nominal lifetime with 1500 warranty hours (service warranty lifetime 1900 hr). Specifications Brand / Family OSRAM XBO Product Number (Americas) 69480 Global Order Reference XBO 3000 W/DHP OFR Nominal Wattage 3000 W Nominal Voltage 29 V Nominal Current 105 A Current Control Range 77–113 A Type of Current DC Nominal Luminous Flux 135,000 lm Light Center Length (LCL) 123.0 mm Electrode Gap (cold) 4.5 mm Base (Anode) SFaX27-14x80 Base (Cathode) SFc27-16/55 Diameter 55.0 mm (2.165 in) Length 345.0 mm Length w/ base excl. pins/connection 295.0 mm Cable/Wire Length (input side) 130 mm Connector Present Yes Product Weight 581 g Burning Position s15/p15 Cooling Forced Max Ambient Temp (pinch point) 230 °C Nominal Lifetime 1500 hr Warranty Hours 1500 hr Service Warranty Lifetime 1900 hr Compatible Barco Projectors (per provided list) Barco DP2K-15C Barco DP2K-19B Barco DP2K-20C Barco DP2K-23B Barco DP4K-19B Barco DP4K-23B Barco 15C (w/ Barco Cathode Adapter R858100) Barco 20C (w/ Barco Cathode Adapter R858100) Barco 19B (w/ Barco Cathode Adapter R865555) Barco 23B (w/ Barco Cathode Adapter R865555) Barco 32B (w/ Barco Cathode Adapter R8436081) Barco 1500 Barco 2000 Box Contents 1 × OSRAM XBO 3000W/DHP OFR Xenon Cinema Lamp (69480) Product Gallery

Please note: Xenon lamps that must be configured or calibrated before shipment cannot be returned.

Shipping Policy

Ask a Question

While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.

If you have any questions about the 69480 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
