• $ 19.99
• Save $ 10.00

---

Default Title - $ 19.99 USD Quantity Add to Cart

---

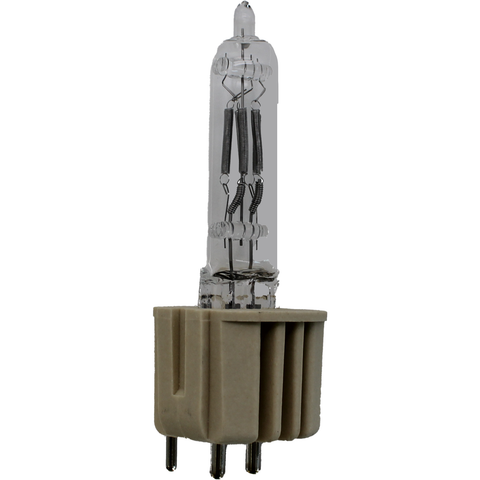

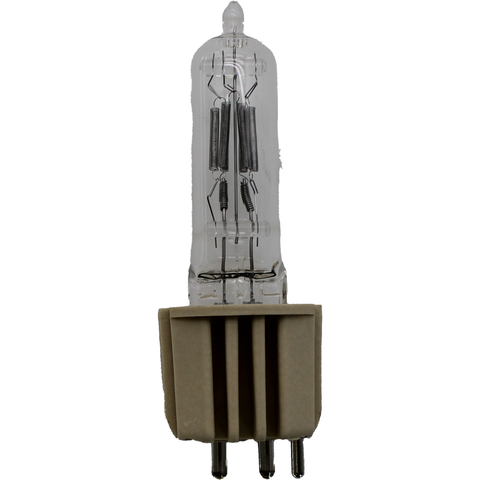

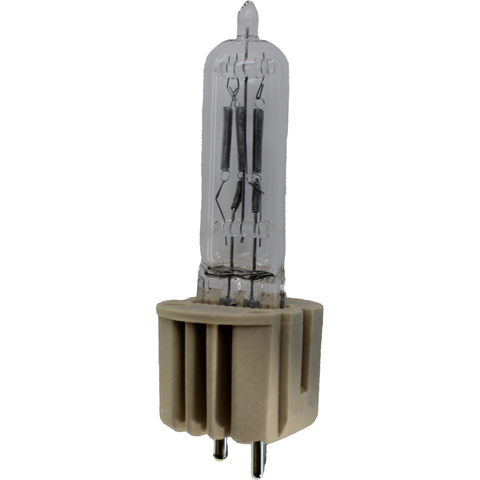

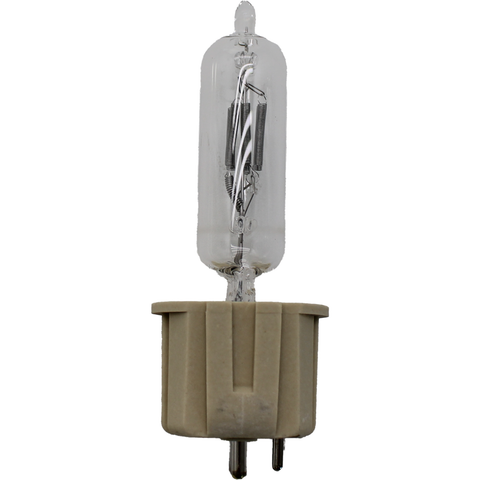

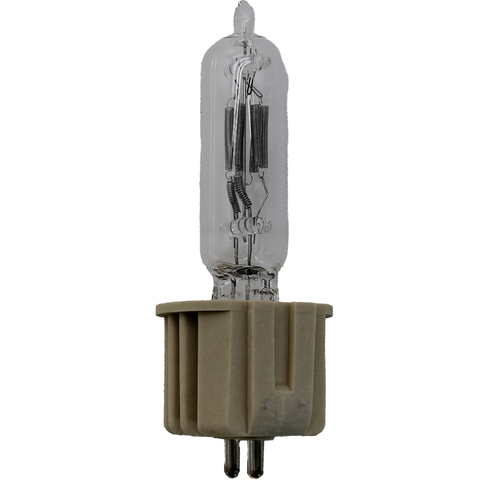

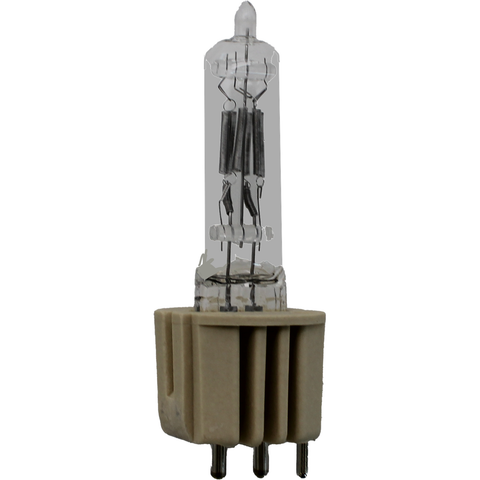

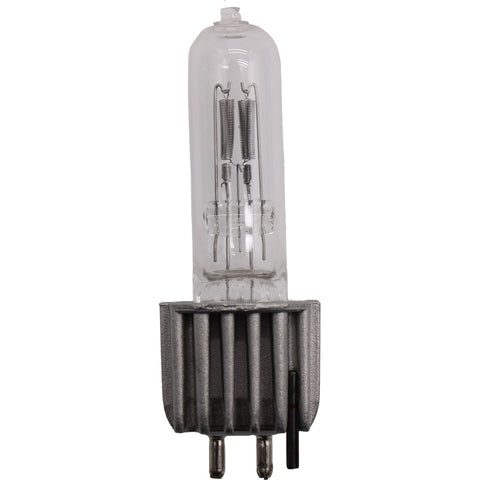

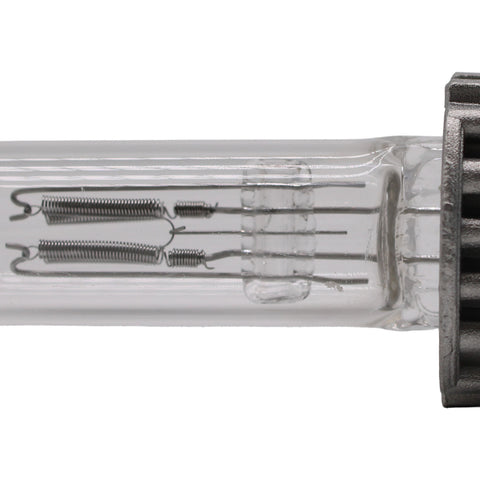

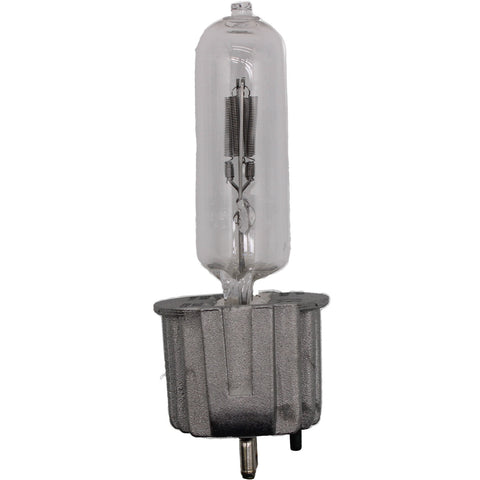

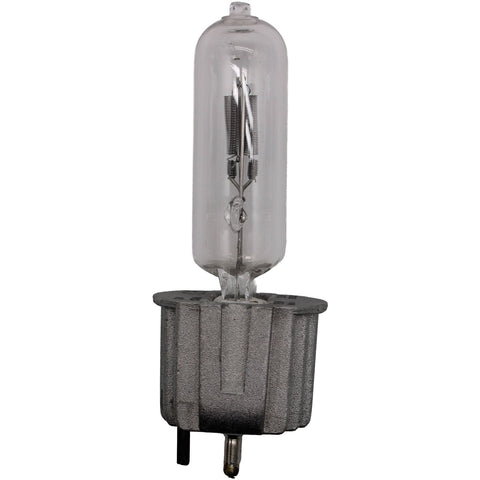

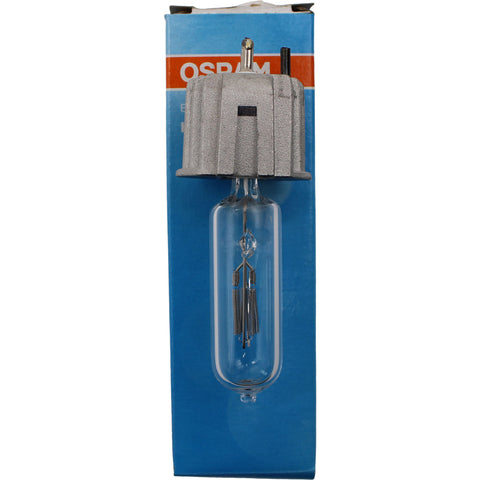

Important Specs 21900 Lumens 300 Hours 750 Watts Product features and benefits Ultra compact filament design (UCF) for high lumen output Unique top bridgeless construction improves beam uniformity for lamps with ≤ 120 volts Unique gas fill which improves light output and minimizes risk of arc-out Special heat sink base for maximum durability in high temperature applications Reinforced pinch seal for extra mechanical strength Foam packaging for easier handling and installation Optimum system performance with TP22H socket Areas of application Stage and theatre Studio, TV and film Architecture & Architainment Technical Data General product information Product Number 54605 Product Name HPL750120 (UCF) 120V 12/CS 1/SKU Ordering Abbreviation HPL 750/120 (UCF) Brand Name Original Specification and Lifespan Bulb Family Brand Name HPL General Description 750 watt, tungsten halogen, HPL series Application Stage & Studio Electrical data Nominal Wattage 750 W Nominal Voltage 120 V Type of Current AC Light technical data Luminous Flux 21900 lm Light Center Length - LCL (in) 2.352 in Light Center Length - LCL (mm) 60.3 mm Color Temperature 3250 K Color Rendering Index 100 Average Rated Life 300 h Physical attributes Base G9.5 with Heat Sink Bulb Shape T6 Maximum Overall Length (in) 4.1 in Maximum Overall Length (mm) 104 mm Length l (in) 4.1 in Length l (mm) 104 mm Length l max. (in) 4.1 in Length l max. (mm) 104 mm Diameter d (in) 0.748 in Diameter d (mm) 19.00 mm Distance a (in) 2.352 in Distance a (mm) ...

Shipping Policy

Ask a Question

While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.

If you have any questions about the 54605 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
