• $ 295.99
• Save $ 193.00

---

Default Title - $ 295.99 USD Quantity Add to Cart

---

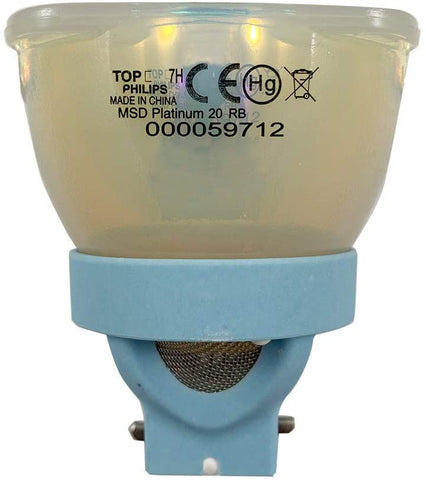

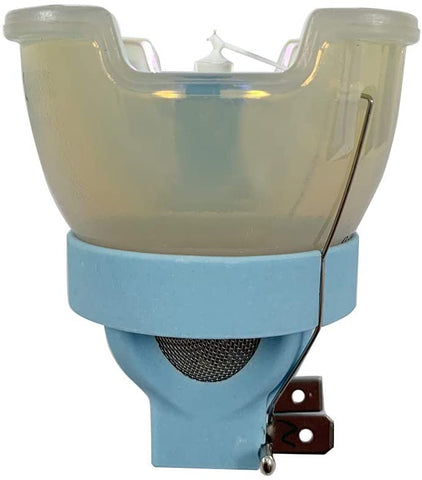

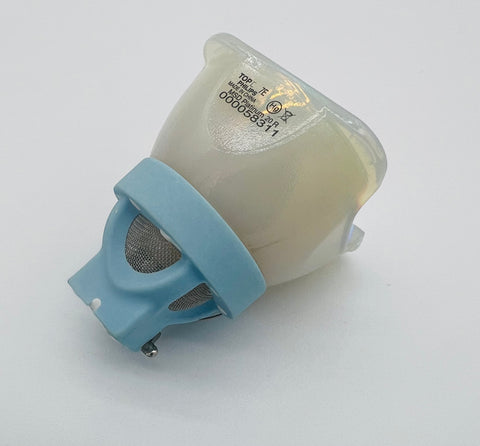

Important Specs 23000 Lumens 1500 Hours 470 Watts Philips MSD Platinum 20RB Stage & Touring Lamp (323741) – 470W, 22,400 lm, 8000K, Dimmable High-output Platinum 20RB performance—22,400 lumens at 8000K with universal positioning and dimmable control for pro beam/spot & hybrid fixtures. Extreme Output22,400 lumens for intense beams and strong throw in professional moving head fixtures. Crisp, Cool White Light8000K color temperature for clean, punchy looks on stage and in venues. Compact Arc for Sharp Projection1.2mm arc length supports crisp projection, sharp beams, and clean optical performance. Efficient for Its Class47 lm/W rated luminous efficacy helps deliver high output with strong performance. Flexible OperationUniversal operating position plus dimmable performance for modern touring rigs and programming. Specifications Lamp Type MSD Platinum (short-arc discharge) Model / Part Number MSD Platinum 20RB / 323741 Power Consumption 470 W Luminous Flux 22,400 lm Luminous Efficacy (rated) 47 lm/W (nom) Correlated Color Temperature (CCT) 8000 K (nom) Chromaticity (x, y) x = 296 (nom), y = 298 (nom) Arc Length 1.2 mm (nom) Operating Position Universal (Any / U) Life to 50% Failures 1,500 hour(s) (nom) Dimmable Yes Order Product Name MSD Platinum 20 RB 1CT/8 Full Product Code 871869668420700 Order Code 323741 Material Nr. (12NC) 928495205314 Quantity Per Pack 1 EAN/UPC 8718696684207 Cap-Base - Works With / Compatible Fixtures This bulb works in many applications including the following: Acme XP-20R BEAM Acme XP-470 BSW Acme XP-20R BSW Clay Paky Mythos Clay Paky Super Sharpy Elation Platinum FLX Terbly G12WB Terbly G12 Hybrid MKII Jolly X-5 Couple FINEART FINE 470BEAM FINEART FINE 470BSW What's in the Box Philips MSD Platinum 20RB Stage & Touring Lamp (323741) Protective packaging Product documentation (as included by manufacturer) Why Choose the Philips MSD Platinum 20RB? 22,400 lumens of high-intensity output for powerful beams and long throw. 8000K color temperature for clean, crisp looks in Broadway and touring applications. 1.2mm arc length supports sharp projection and clean optics performance. Universal operating position plus dimmable performance for flexible programming. 1,500-hour life to 50% failures helps reduce downtime and maintenance. Product Gallery
