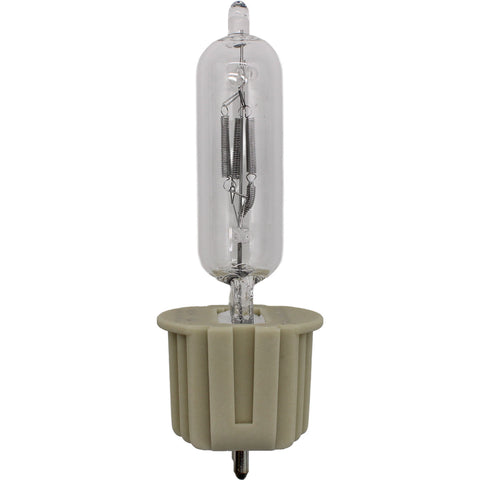

Ushio HPL 575W 120V stage and studio lamp with 3000-hour lifespan, model 1004220.
Original Ushio lamp Inside! Guaranteed Original Ushio Lighting!

Ushio HPL 575W 120V/SL 3000HR Stage & Studio Lamp 575/120 - 1004220

202 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596
  • $ 15.99
  • Save $ 13.00


  • Important Specs
  • 10500 Lumens
  • 3000 Hours
  • 575 Watts
Introducing the revamped Ushio HPL+ lamp, now the most powerful HPL available. With its newly designed ultra-compact filament, this lamp enhances the optical efficiency of your ETC Source Four™ fixtures, delivering up to 20% more lumens—meaning you get more light without changing the fixture.

Unlike competing HPL lamps, which have larger filament dimensions, Ushio’s innovative 6.0mm x 9.5mm filament design was developed in collaboration with ETC engineers. This compact profile optimizes light distribution, maximizing both axial and radial efficiency.

The precise optics of the Source Four require equally precise lamp engineering. Ushio has addressed this need by creating a reduced geometry filament that meets high manufacturing standards. Enjoy measurable performance, reliable quality, a range of lamp types, and cutting-edge design tailored for your theatrical needs.

DATA SPECIFICATIONS

Works with the following ETC Source Four™ fixtures:
  • Source Four jr: Rated up to 575W
  • Source Four jr Zoom: Rated up to 575W
  • Source Four: Rated up to 750W
  • Source Four Zoom: Rated up to 750W
  • Source Four PAR EA: Rated up to 750W
  • Source Four PAR MCM: Rated up to 575W
  • Source Four PAR Nel: Rated up to 750W

    • Dimensions: 104 mm x 60.3mm x 18.35mm
USHIO Item Code 1004220
Product Series HPL
Prod. ID / ANSI Code HPL-575/120V/SL
Description HPL-575/120V/SL, 3000 Hour
Description 2 575/120V/SL
Item Type Halogen
Base HT/SNK
Voltage 120
Wattage 575
Burn Position ANY
Bulb Shape T6
Bulb Finish CLEAR
Color Temp (K) 2950
Efficacy (lm/W) 28.7
Filament 6-C8
Front Glass Cover NO
Initial Lumens (lm) 10500
Luminous Flux (lm) 10500
Life (hr) 3000
Diameter (mm) 18.35
MOL (mm) 104
Light Center Length (mm) 60.3
Case Qty 10
Important Specs 10500 Lumens 3000 Hours 575 Watts Introducing the revamped Ushio HPL+ lamp, now the most powerful HPL available. With its newly designed ultra-compact filament, this lamp enhances the optical efficiency of your ETC Source Four™ fixtures, delivering up to 20% more lumens—meaning you get more light without changing the fixture. Unlike competing HPL lamps, which have larger filament dimensions, Ushio’s innovative 6.0mm x 9.5mm filament design was developed in collaboration with ETC engineers. This compact profile optimizes light distribution, maximizing both axial and radial efficiency. The precise optics of the Source Four require equally precise lamp engineering. Ushio has addressed this need by creating a reduced geometry filament that meets high manufacturing standards. Enjoy measurable performance, reliable quality, a range of lamp types, and cutting-edge design tailored for your theatrical needs. DATA SPECIFICATIONS USHIO Item Code 1004220 Product Series HPL Prod. ID / ANSI Code HPL-575/120V/SL Description HPL-575/120V/SL, 3000 Hour Description 2 575/120V/SL Item Type Halogen Base HT/SNK Voltage 120 Wattage 575 Burn Position ANY Bulb Shape T6 Bulb Finish CLEAR Color Temp (K) 2950 Efficacy (lm/W) 28.7 Filament 6-C8 Front Glass Cover NO Initial Lumens (lm) 10500 Luminous Flux (lm) 10500 Life (hr) 3000 Diameter (mm) 18.35 MOL (mm) 104 Light Center Length (mm) 60.3 Case Qty 10 Works with the following ETC Source Four™ fixtures: Source Four jr: Rated up to 575W Source Four jr Zoom: Rated up to 575W Source Four: Rated up to 750W Source Four Zoom: Rated up to 750W Source Four PAR EA: Rated up to 750W Source Four PAR MCM: Rated up to 575W Source Four PAR Nel: Rated up to 750W Dimensions: 104 mm x 60.3mm x 18.35mm
Shipping Policy

Ask a Question

THE 1004220 IS CENTRALLY LOCATED & SHIPPING FROM MISSOURI, USA!
American Flag

While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.

If you have any questions about the 1004220 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
Buy Smart, Buy Bright, Buy Jaspertronics!


We Also Recommend
1002283 HPL 575/120 Medium BiPin with Heat Sink

Ushio HPL 575W 120X+ 2000HR Stage & Studio Lamp 575/120 - 1002283

$ 14.99 Save $ 12.00
1000671 HPL 575/115 Medium BiPin with Heat Sink

Ushio HPL 575W 115X+ 2000HR Stage & Studio Lamp 575/115 - 1000671

$ 15.89 Save $ 11.10
HPL 750W 120V 300HR Stage & Studio Lamp 750/120 - Replaces 54605

HPL 750W 120V 300HR Stage & Studio Lamp 750/120 - Replaces 54605

$ 19.99 Save $ 10.00
1003178 HPL 750/120 Medium BiPin with Heat Sink

Ushio HPL 750W 120X+ 1500HR Stage & Studio Lamp 750/120 - 1003178

$ 14.59 Save $ 12.40
HPL 575W 115V 300HR Stage & Studio Lamp 575/115 - Replaces 54622

HPL 575W 115V 300HR Stage & Studio Lamp 575/115 - Replaces 54622

$ 19.99 Save $ 15.00

QUESTIONS & ANSWERS

Ask a Question

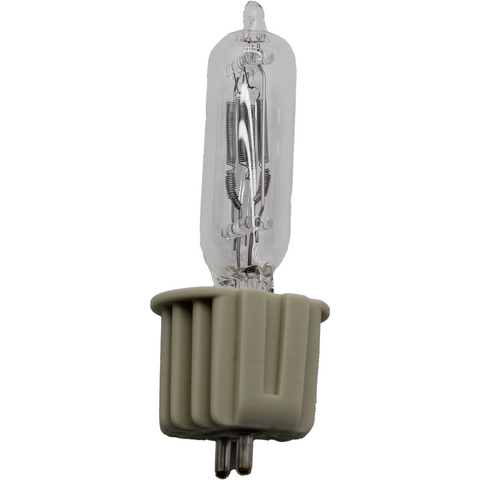

  • I am shopping for replacement bulbs (Oshio/sylvania HPL 575 watt). Your page for Ushio HPL 575W 120V/SL 3000HR Stage & Studio Lamp 575/120 - 1004220 ( https://www.jaspertronics.com/collections/hpl-lamps/products/1004220 ) has one example photo with "3 pins" in the base. The other example photos have a 2 pin base. I need to be sure that the bulb has only 2 pins, to be compatible with the socket in my Source Four fixtures. Please advise, thank you.

    The HPL lamps were originally designed by Ushio and ETC for the Source Four fixtures. Only the 750W HPL lamps have 3 pins and all other wattages of the HPL lamp, including the 575W, have 2 pins. It appears we simply have an image issue we will correct, however it is confirmed, the 575W has a 2 pin base!
