• $ 15.99
• Save $ 13.00

---

Default Title - $ 15.99 USD Quantity Add to Cart

---

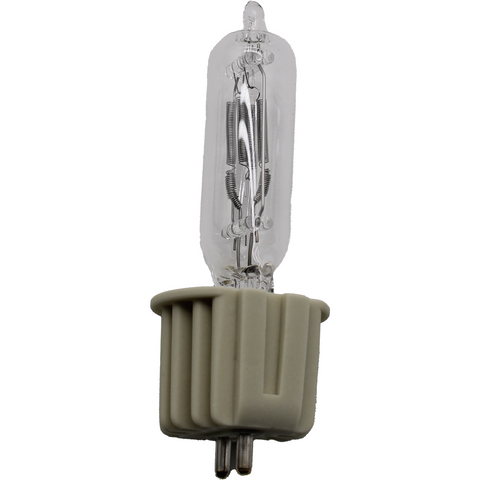

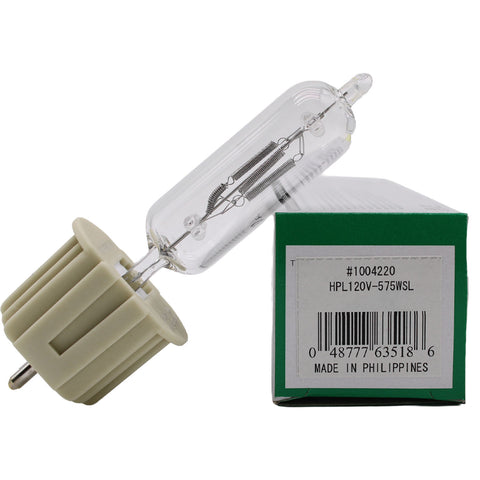

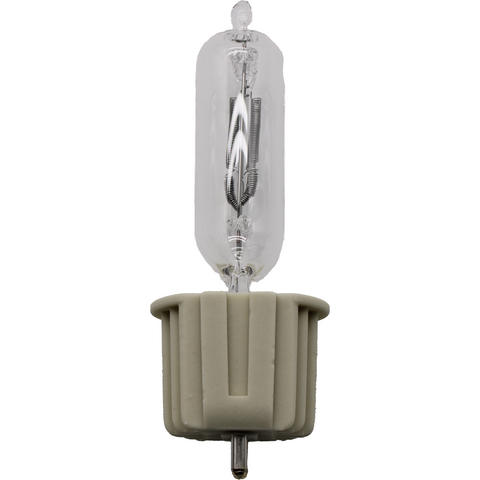

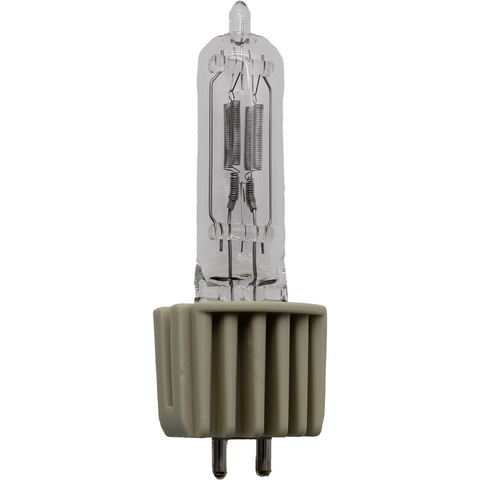

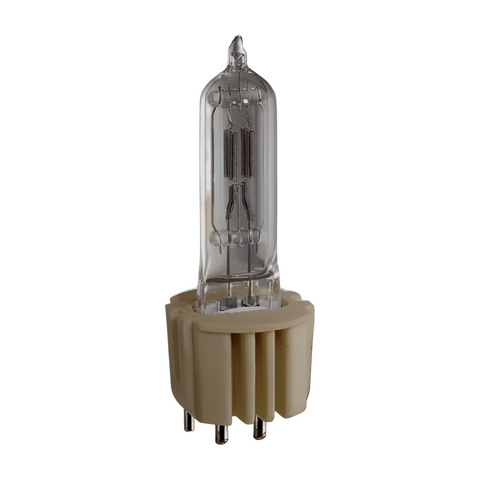

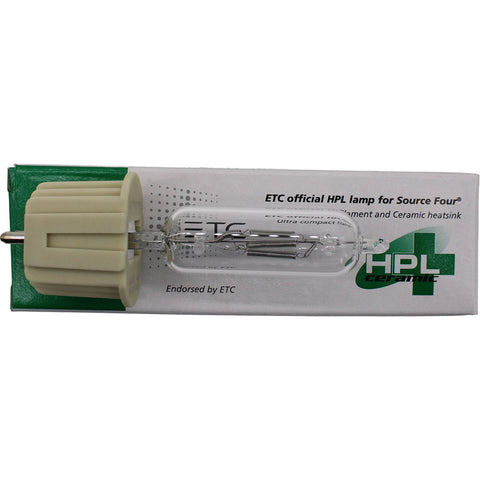

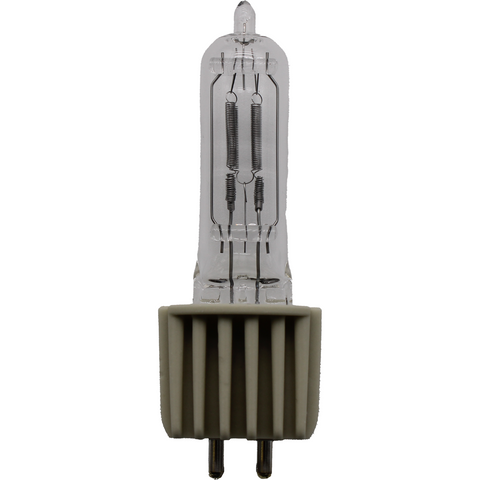

Important Specs 10500 Lumens 3000 Hours 575 Watts Introducing the revamped Ushio HPL+ lamp, now the most powerful HPL available. With its newly designed ultra-compact filament, this lamp enhances the optical efficiency of your ETC Source Four™ fixtures, delivering up to 20% more lumens—meaning you get more light without changing the fixture. Unlike competing HPL lamps, which have larger filament dimensions, Ushio’s innovative 6.0mm x 9.5mm filament design was developed in collaboration with ETC engineers. This compact profile optimizes light distribution, maximizing both axial and radial efficiency. The precise optics of the Source Four require equally precise lamp engineering. Ushio has addressed this need by creating a reduced geometry filament that meets high manufacturing standards. Enjoy measurable performance, reliable quality, a range of lamp types, and cutting-edge design tailored for your theatrical needs. DATA SPECIFICATIONS USHIO Item Code 1004220 Product Series HPL Prod. ID / ANSI Code HPL-575/120V/SL Description HPL-575/120V/SL, 3000 Hour Description 2 575/120V/SL Item Type Halogen Base HT/SNK Voltage 120 Wattage 575 Burn Position ANY Bulb Shape T6 Bulb Finish CLEAR Color Temp (K) 2950 Efficacy (lm/W) 28.7 Filament 6-C8 Front Glass Cover NO Initial Lumens (lm) 10500 Luminous Flux (lm) 10500 Life (hr) 3000 Diameter (mm) 18.35 MOL (mm) 104 Light Center Length (mm) 60.3 Case Qty 10 Works with the following ETC Source Four™ fixtures: Source Four jr: Rated up to 575W Source Four jr Zoom: Rated up to 575W Source Four: Rated up to 750W Source Four Zoom: Rated up to 750W Source Four PAR EA: Rated up to 750W Source Four PAR MCM: Rated up to 575W Source Four PAR Nel: Rated up to 750W Dimensions: 104 mm x 60.3mm x 18.35mm

Shipping Policy

Ask a Question

While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.

If you have any questions about the 1004220 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
