• $ 1,499.99
• Save $ 400.00

---

Default Title - $ 1,499.99 USD Quantity Add to Cart

---

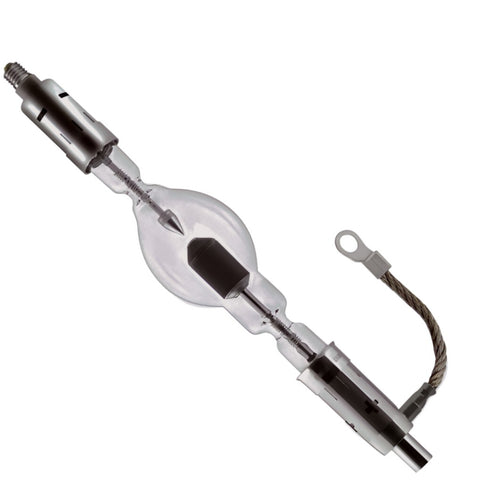

Important Specs 7000 Watts OSRAM XBO 7000W/HPN OFR Xenon Cinema Lamp (55227) 7000W xenon short-arc lamp for select NEC digital cinema projectors 7.0kW DC xenon lamp with LCL 171.5mm for compatible NEC cinema projection systems. High-Power 7kW OutputDesigned for demanding cinema projection environments and large screens. Stable Electrical Ratings41V, 170A nominal with 135–175A current control range. Correct Optical GeometryLCL 171.5 mm and 7.5 mm electrode gap (cold) support proper alignment. Booth-Ready RequirementsForced cooling and s15/p15 burning position (vertical: anode (+) on top). Fitment Details Included78 mm diameter, 428 mm length, connector present, 235 mm input cable. Specifications Brand / Family OSRAM XBO Product Number (Americas) 55227 Product Name (Americas) XBO 7000W/HPN 1/CS 1/SKU Global Order Reference XBO 7000 W/HPN OFR Nominal Wattage 7000 W Nominal Voltage 41 V Nominal Current 170 A Current Control Range 135–175 A Light Center Length (LCL) 171.5 mm Electrode Gap (cold) 7.5 mm Base (Anode) SFaX30-9.5 Base (Cathode) SFa30-20 Diameter 78.0 mm Length 428.0 mm Length w/ base excl. pins/connection 389.0 mm Cable/Wire Length (input side) 235 mm Connector Present Yes Product Weight 1023 g Burning Position s15/p15 Cooling Forced Max Ambient Temp (pinch point) 230 °C Nominal Lifetime 400 hr Warranty Hours 300 hrs Service Warranty Lifetime 500 hr REACh Primary Article Identifier 4062172031691 Compatible NEC Projectors (per provided list) NEC Digital Cinema 2500S NEC Digital Cinema 3200S NEC Digital Cinema 3240S Box Contents 1 × OSRAM XBO 7000W/HPN OFR Xenon Cinema Lamp (55227) Product Gallery

Please note: Xenon lamps that must be configured or calibrated before shipment cannot be returned.

Shipping Policy

Ask a Question

While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.

If you have any questions about the 55227 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
