• $ 1,149.99
• Save $ 850.00

---

Default Title - $ 1,149.99 USD Quantity Add to Cart

---

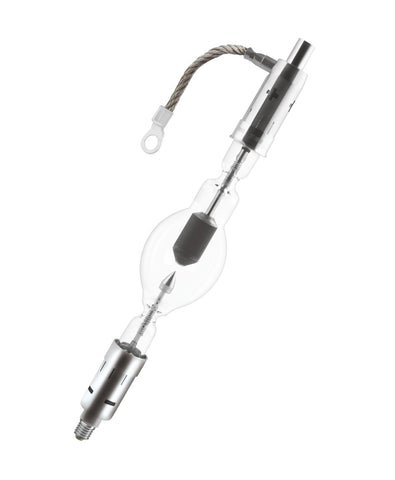

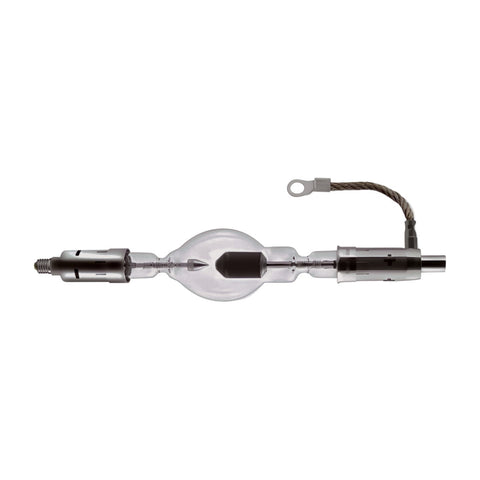

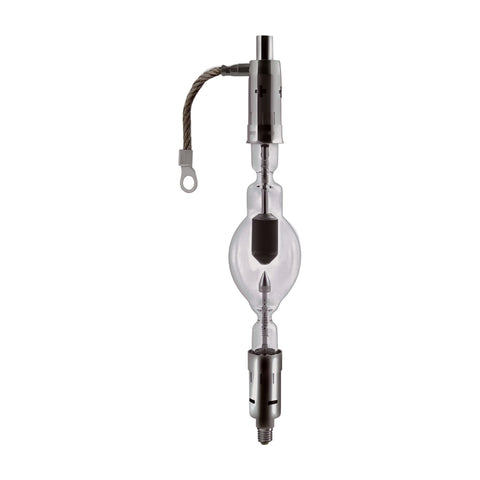

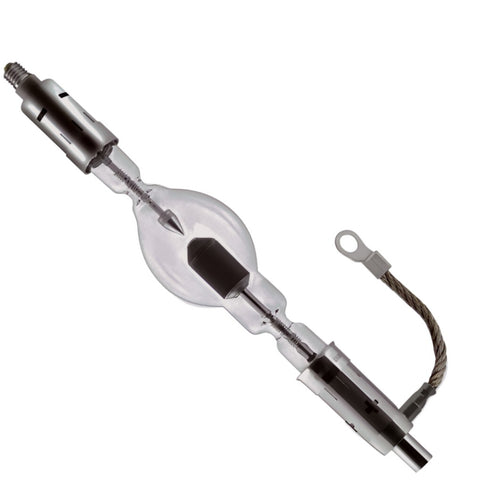

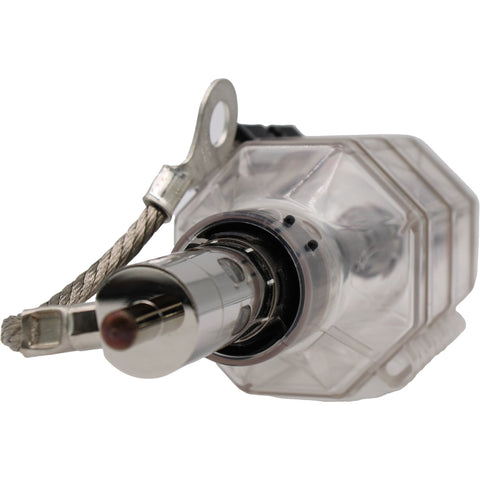

Important Specs 6500 Watts OSRAM XBO 6500W/DHP L OFR Xenon Cinema Lamp (54337) 6500W DC xenon short-arc lamp for select Barco digital cinema projectors High-power 6.5kW XBO lamp with LCL 170.5mm for compatible Barco cinema projection systems. High-Power Output6500W xenon short-arc lamp for demanding cinema projection applications. Stable DC Operation39V, 165A nominal with 133–173A current control range. Correct Optical GeometryLCL 170.5 mm and 8.0 mm electrode gap (cold) support proper alignment. Booth-Ready RequirementsForced cooling and s15/p15 burning position (vertical: anode (+) on top). Fitment Details Included78 mm diameter, 436 mm length, connector present, 155 mm input cable. Specifications Brand / Family OSRAM XBO Product Number (Americas) 54337 Product Name (Americas) XBO 6500W/DHP L OFR 1/CS 1/SKU Global Order Reference XBO 6500 W/DHP L OFR Nominal Wattage 6500 W Nominal Voltage 39 V Nominal Current 165 A Current Control Range 133–173 A Type of Current DC Light Center Length (LCL) 170.5 mm Electrode Gap (cold) 8.0 mm Base (Anode) SFaX30-9.5 Base (Cathode) SFa30-7.9 Diameter 78.0 mm Length 436.0 mm Length w/ base excl. pins/connection 393.0 mm Cable/Wire Length (input side) 155 mm Connector Present Yes Product Weight 1023 g Burning Position s15/p15 Cooling Forced Max Ambient Temp (pinch point) 230 °C Nominal Lifetime 700 hr Warranty Hours 700 hrs Service Warranty Lifetime 800 hr REACh Primary Article Identifier 4052899448636 | 4062172030755 Compatible Barco Projectors (per provided list) Barco Digital Cinema DP2K-32B Barco Digital Cinema DP4K-32B Barco 32B Projector (w/ Barco Cathode Adapter R8436081) Barco Digital Cinema 90 Barco Digital Cinema 100 Barco Digital Cinema 3000 Box Contents 1 × OSRAM XBO 6500W/DHP L OFR Xenon Cinema Lamp (54337) Product Gallery

Please note: Xenon lamps that must be configured or calibrated before shipment cannot be returned.

Shipping Policy

Ask a Question

While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.

If you have any questions about the 54337 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
