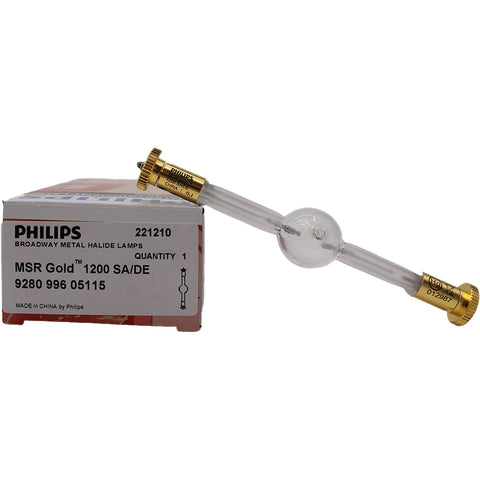

MSR Gold 1200 SA/DE Philips 287144 1200 Watt 100 Volt Metal Halide Lamp
MSR Gold 1200 SA/DE Jaspertronics™ OEM 28714-4 1200 Watt 100 Volt Metal Halide Lamp. Applications include: entertainment, effect and architectural lighting.
Jaspertronics™ OEM MSR 1200 SA/DE Gold metal halide, double ended, 6000K, 109000 Lm, SFC10-4 base
Features:
- Enables use at higher temperatures in any burning position. Longer lifetime, fewer early failures, consistent performance over time
- Pure, white light; color point close to black body line. Consistent color impression over MSR Range
- Reduces early lamp or lamp holder failures
To optimize the total lifetime of the double ended MSR Gold MSR 1200 SA/DE double ended lamps, the caps are plated with gold. This provides superior heat protection and thereby minimizes premature failure of the lamp and lamp holder, as well as ensuring extended consistent performance. In addition, the highly innovative P3 technology, developed by Jaspertronics™ OEM, allows the lamp to be used at higher temperatures, which further extends service life and consistency of high-quality light output.
SPECIFICATIONS
| Volts | 100 |
| Lamp Type | Metal Halide |
| Bulb Shape | T6.5 |
| Base | SFC 10-4 |
| Rated Life Hours | 750 |
| Watts | 1200 |
| Current | 13.6 |
| Nominal Lumens | 110000 |
| MOL (inches) | 5.35 |
| MOL (mm) | 136 |
| Arc Length (mm) | 7 |
| Color Temperature | 6000 Kelvin |
| CRI | 85 |
Product features
- eXtreme Seal technology for discharge lamps
Product benefits
- Lamp and holder from a single source
- Rapid relamping with bayonet lock
Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, Lok-it! lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
The MSR Gold 1200 SA/DE Jaspertronics™ OEM 287144 is used in following equipment:
Vari-Lite VL3000 Spot
Vari-Lite VL3000 Wash
Vari-Lite VL3000 Q Spot
Vari-Lite VL3000 Q Wash
Vari-Lite VL3500 Spot
Vari-Lite VL3500 Q Spot
Chauvet Followspot 1200
Martin MAC 2000 Profile II
Martin MAC 2000 Performance II
Lycian 1271 Stark Lite
Lycian 1275 Super Star 1.2
Lycian M2 1200
Elation Stage Color DMX-512
Clay Paky Stage Profile
Clay Paky Stage Zoom
Coemar i-Spot 1200 / 1200 EB
Coemar ShowColor 1200 EB
Controlite (Amptown) PML Zoom
Deliya X-7
F.A.L. Three-Sixty 1200 Pro
Fine Art V-2002, 2008, 2009
Fine Art FINE 2000 Wash
Fine Art FINE 2000 Spot
Fine Art FINE 3000
Bruning 1200
GENI Stratos
GENI OBY 2000
GLP Patend Light 1200
Griven Acrobat PE 1200
JB Lighting Varyscan 7 1200HMI
JB Lighting Varycolor 7 1200HMI
Lycian Stage Lighting 1275 SUPERSTAR 1.2
Martin MAC 2000 Profile
Martin MAC 2000 Wash
Martin MAC 2000 Beam
Pearl River Pilot 1200 Spot
Pearl River Pilot 1200 Wash
Vari-Lite VL3000Q Spot
Vari-Lite VL3500Q Spot
Studio Due Excess XS 1200
Martin MAC 2000 Performance
Clay Paky Golden Colour 1200
Clay Paky Golden Spot 1200
Clay Paky Stage Color 1200SV
Clay Paky Stage Profile 1200SV
Clay Paky Stage Profile Plus SV
Clay Paky Stage Zoom1200SV
Clay Paky VIP 1200
Coemar i Spot 1200
GENI OBY 1200
JB Lighting Varyscan 7
Martin Mac 2000
Vari-Lite Vl 3000 wash
PROEL Dreamlight
X & Y Systems Xy 2001
X & Y Systems ZAP Color
