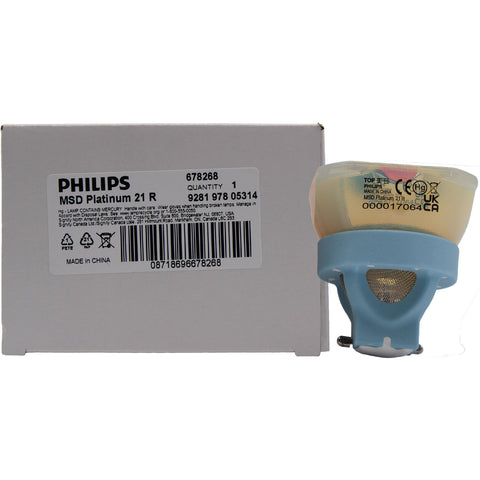

Philips MSD Platinum 21R Stage Touring Broadway Lamp - 9281-978-05314
- Important Specs
- 23000 Lumens
- 1500 Hours
- 470 Watts
Philips MSD Platinum 21R Stage & Touring Lamp (323659) – 470W, 23,000 lm, 8000K, Dimmable
High-output Platinum 21R performance—23,000 lumens at 8000K with universal positioning and dimmable control for pro beam/spot & hybrid fixtures.
23,000 lumens for intense beams and strong throw in professional moving head fixtures.
8000K color temperature for clean, punchy looks on stage and in venues.
1.2mm arc length supports crisp projection, sharp beams, and clean optical performance.
1,500-hour life to 50% failures helps reduce downtime and supports demanding show schedules.
Universal operating position plus dimmable performance for modern touring rigs and programming.
| Specifications | |
|---|---|
| Lamp Type | MSD Platinum (short-arc discharge) |
| Model / Part Number | MSD Platinum 21R / 323659 |
| Power Consumption | 470 W |
| Luminous Flux | 23,000 lm |
| Correlated Color Temperature (CCT) | 8000 K (nom) |
| Chromaticity (x, y) | x = 297 (nom), y = 300 (nom) |
| Arc Length | 1.2 mm (nom) |
| Operating Position | Universal (Any / U) |
| Life to 50% Failures | 1,500 hour(s) (nom) |
| Dimmable | Yes |
| Net Weight | 0.243 lb |
| CE Mark | Yes |
| Order Product Name | MSD Platinum 21 R 1CT/8 |
| Full Product Code | 871869667826800 |
| Order Code | 323659 |
| Material Nr. (12NC) | 928197805314 |
| Cap-Base | - |
Works With / Compatible Fixtures
This bulb works in many applications including the following:
- Fine ART Fine 470 Beam OD
- Fine ART Fine 470 BSW OD
- Elation Proteus Hybrid
- PRG Icon EDGE
- Terbly G20 Hybrid IP
- Terbly G21 Hybrid
- Elation Artiste V21BS
- Elation Proteus Hybrid V21BS IP
- Terbly G12WB
- Elation Proteus Hybrid WMG PRH135
- Elation Proteus Hybrid PRH021
- Elation Artiste V21BS
What's in the Box
- Philips MSD Platinum 21R Stage & Touring Lamp (323659)
- Protective packaging
- Product documentation (as included by manufacturer)
Why Choose the Philips MSD Platinum 21R?
- 23,000 lumens of high-intensity output for powerful beams and long throw.
- 8000K color temperature for clean, crisp looks in Broadway and touring applications.
- 1.2mm arc length supports sharp projection and clean optics performance.
- Universal operating position plus dimmable performance for flexible programming.
- 1,500-hour life to 50% failures helps reduce downtime and maintenance.

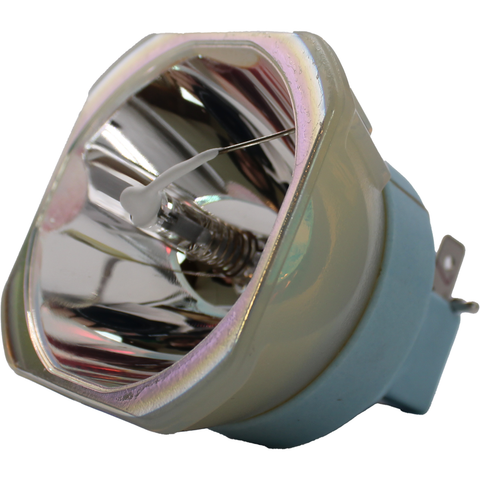

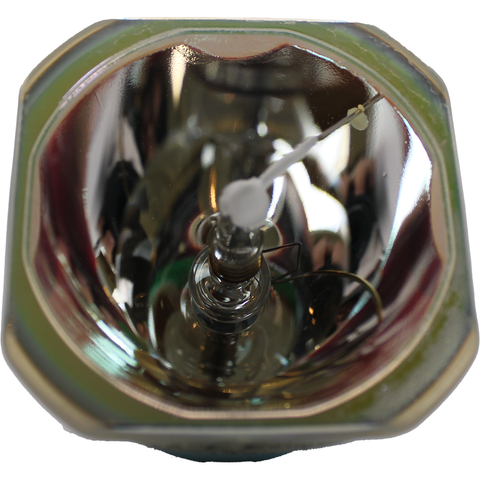

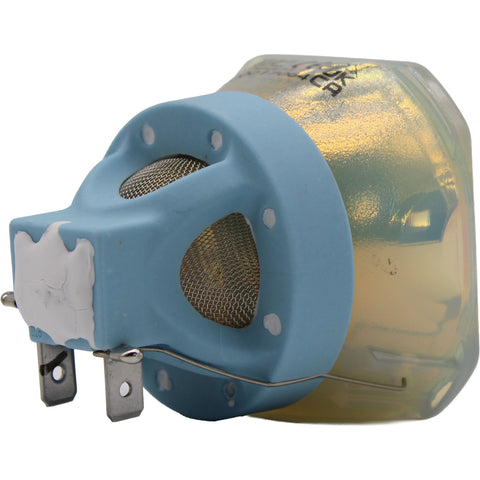

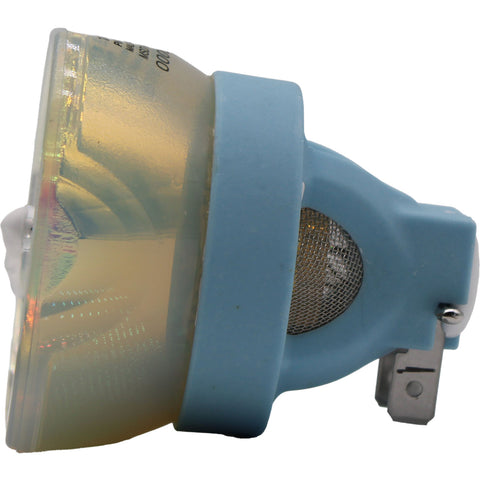

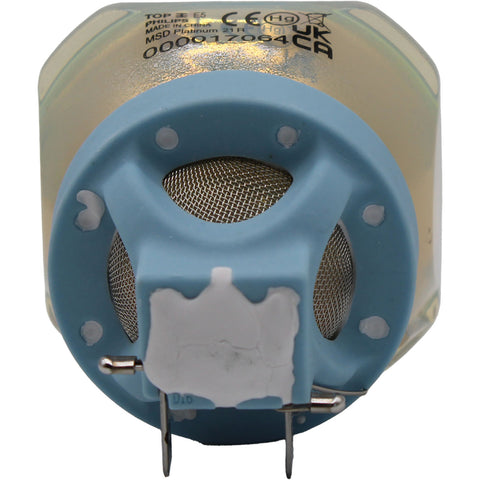

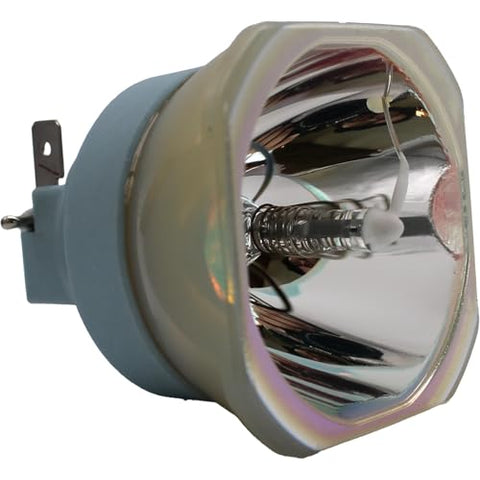

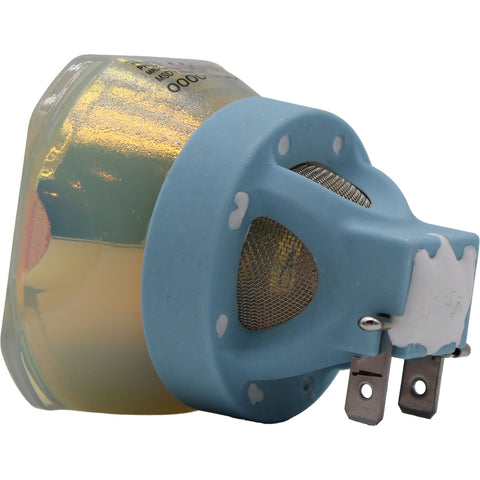

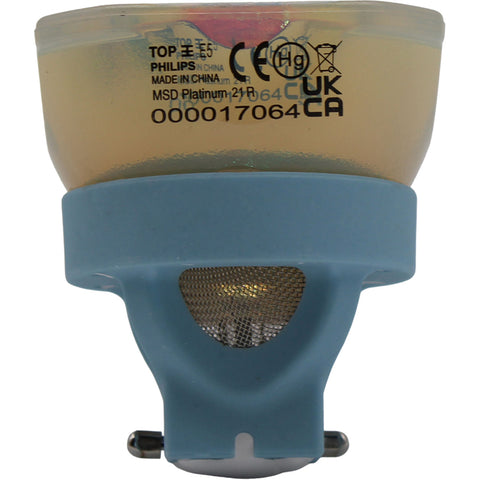

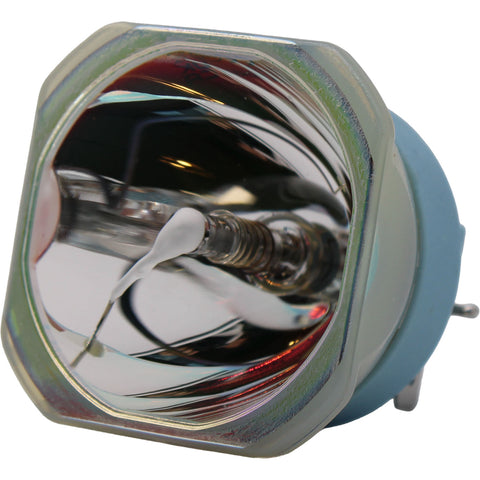

Product Gallery
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
We Also Recommend
QUESTIONS & ANSWERS
Ask a Question-
Are these similar to the others on here? 323659
Yes, the 323659 and 9281-978-05314 are the same Philips MSD Platinum 21R bulb. The 323659 number is an 'order code', the 928197805314 number is a 'material number', and 'MSD Platinum 21R' is the product name.
As all of this information appears on the product package, some users will know it as the 21R, some as the 323659, and others as the 9281-978-05314. We have a listing for each to allows a search for any of those three part numbers to bring up a search result that matches the exact entry made.
They are all representative of the same identical 470W Philips MSD Platinum lamp!
