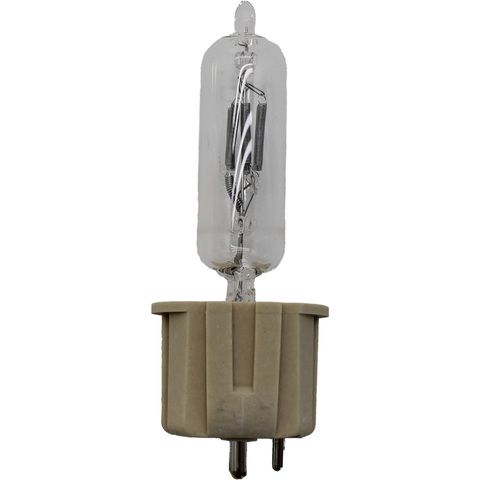

Osram Sylvania HPL 750W 120V 300HR Stage & Studio Lamp 750/120 - 54605

798 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596
  • $ 19.99
  • Save $ 10.00




Product features and benefits
  • Ultra compact filament design (UCF) for high lumen output
  • Unique top bridgeless construction improves beam uniformity for lamps with ≤ 120 volts
  • Unique gas fill which improves light output and minimizes risk of arc-out
  • Special heat sink base for maximum durability in high temperature applications
  • Reinforced pinch seal for extra mechanical strength
  • Foam packaging for easier handling and installation
  • Optimum system performance with TP22H socket
Areas of application
  • Stage and theatre
  • Studio, TV and film
  • Architecture & Architainment

Technical Data

General product information

Product Number

54605

Product Name

HPL750120 (UCF) 120V 12/CS 1/SKU

Ordering Abbreviation

HPL 750/120 (UCF)

Brand Name

OSRAM

Family Brand Name

HPL

General Description

750 watt, tungsten halogen, HPL series

Application

Stage & Studio

Electrical data

Nominal Wattage

750 W

Nominal Voltage

120 V

Type of Current

AC

Light technical data

Luminous Flux

21900 lm

Light Center Length - LCL (in)

2.352 in

Light Center Length - LCL (mm)

60.3 mm

Color Temperature

3250 K

Color Rendering Index

100

Average Rated Life

300 h

Physical attributes

Base

G9.5 with Heat Sink

Bulb Shape

T6

Maximum Overall Length (in)

4.1 in

Maximum Overall Length (mm)

104 mm

Length l (in)

4.1 in

Length l (mm)

104 mm

Length l max. (in)

4.1 in

Length l max. (mm)

104 mm

Diameter d (in)

0.748 in

Diameter d (mm)

19.00 mm

Distance a (in)

2.352 in

Distance a (mm)

60.3 mm

Filament

4-C8

Reflector Coating

19.00

Additional product data

Operating Position

Any

Class

C (gas)

Lamp Type

SINGLE END
