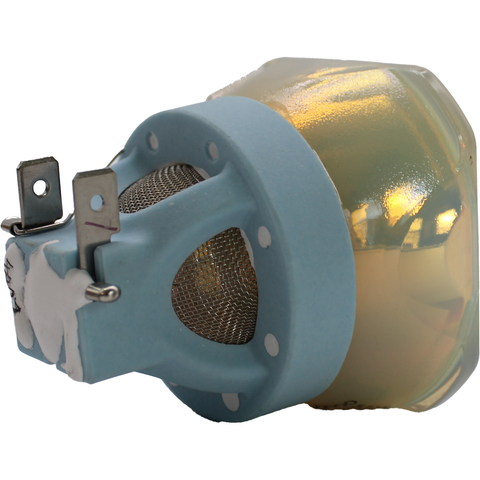

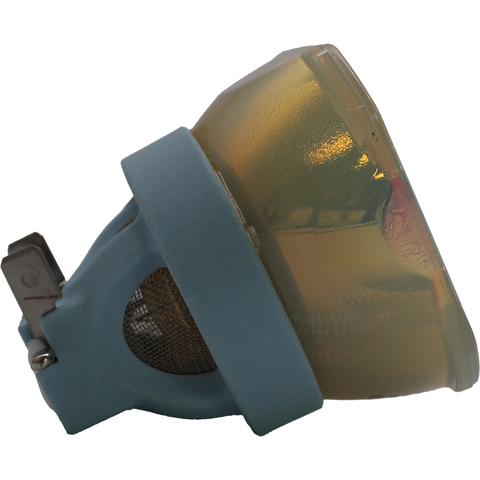

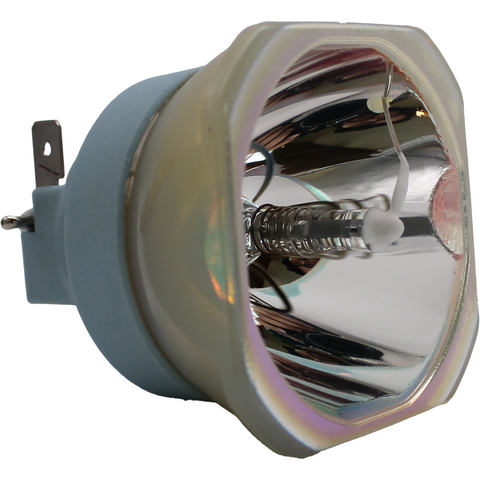

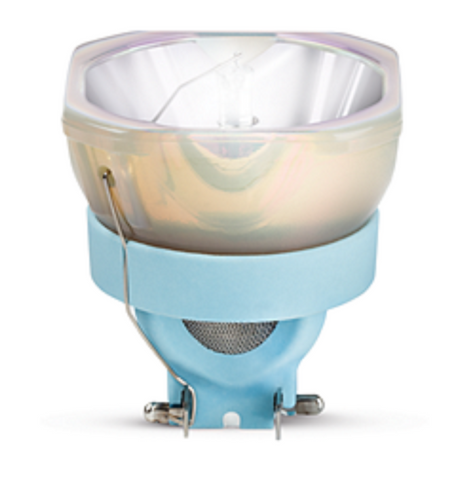

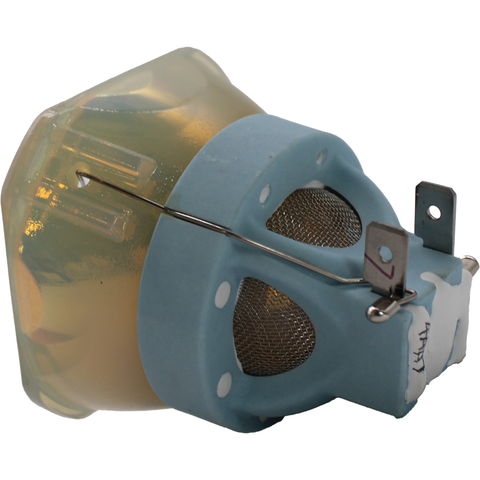

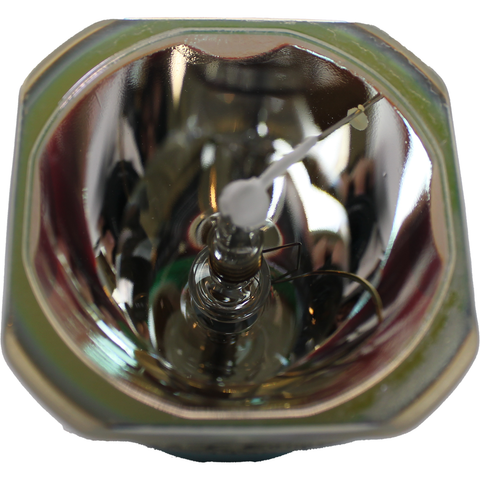

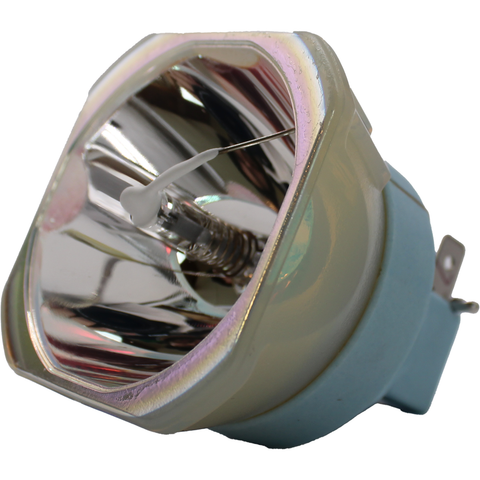

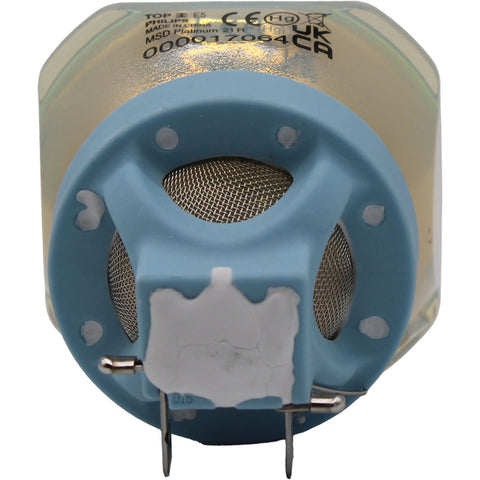

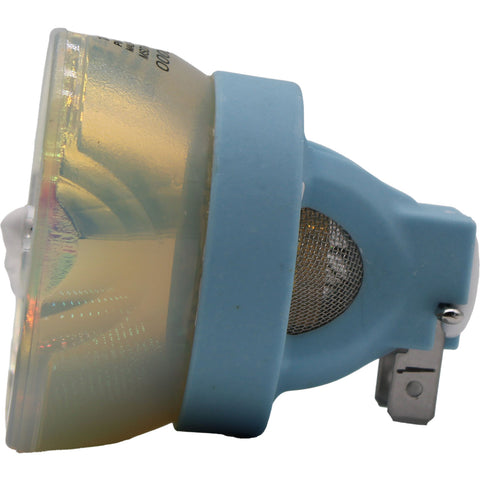

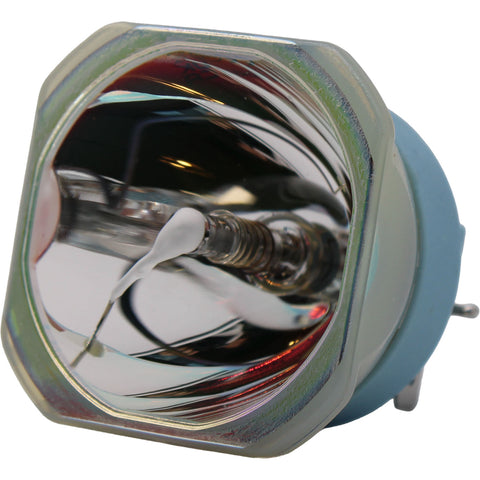

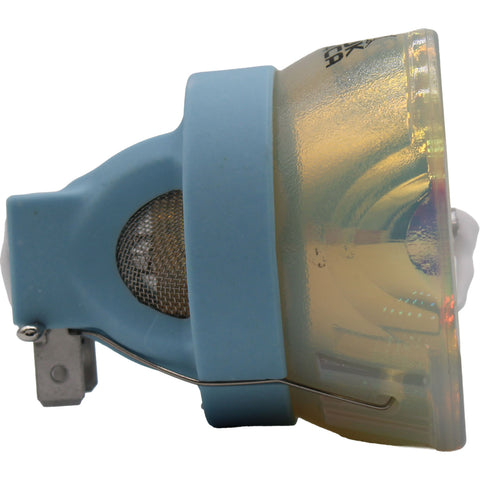

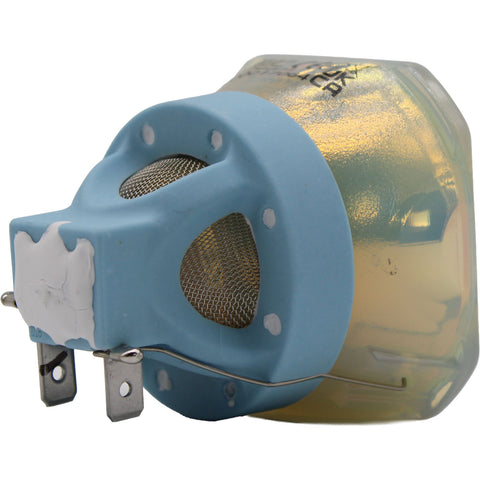

Philips MSD Platinum 21R Stage Touring Broadway Lamp
Original Philips lamp Inside! Guaranteed Original Philips Lighting!

Philips MSD Platinum 21R Stage Touring Broadway Lamp

  • $ 299.99
  • Save $ 200.00


The MSD Platinum lamps open up new levels of creative freedom in entertainment lighting, with powerful, compact and brilliantly intense light. Their compact, lightweight design provides the freedom to create smaller, lighter luminaires – for use at any location on stage. And their short arc, high color temperature and innovative reflector produce a sparkling, high beam intensity for outstanding color reproduction. They also offer long and reliable lifetime, high efficacy and fast replacement times. It all adds up to an intensely exciting creative experience.

Philips MSD Platinum 21R Specifications:

General Information
Cap-Base
-  [ -]
Operating Position
Universal  [ Universal]
Main Application
Stage/Touring
Life to 50% Failures (Nom)
1500 h
System Description
Reflector-E21.4
Light Technical
Color Code
2
Initial lumen (Min)
14100 lm
Initial lumen (Nom)
15600 lm
Chromaticity Coordinate X (Max)
312
Chromaticity Coordinate X (Min)
282
Chromaticity Coordinate X (Nom)
297
Chromaticity Coordinate Y (Max)
315
Chromaticity Coordinate Y (Min)
285
Chromaticity Coordinate Y (Nom)
300
Correlated Color Temperature (Nom)
8000 K
Luminous Efficacy (rated) (Nom)
33 lm/W
Color Rendering Index (Nom)
-
Operating and Electrical
Power (Rated) (Nom)
470 W
Controls and Dimming
Dimmable
Yes
Mechanical and Housing
Cap-Base Information
na  [ -]
Luminaire Design Requirements
Bulb Temperature (Max)
900 °C
Pinch Temperature (Max)
350 °C
Product Data
Full product code
871869667826800
Order product name
MSD Platinum 21 R
EAN/UPC - Product
8718696678268
Order code
323659
Numerator - Quantity Per Pack
1
Material Nr. (12NC)
928197805314
Net Weight (Piece)
110.000 g



This bulb is used in many custom applications as well as the following:
PRG ICON EDGE, TERBLY G20 HYBRID IP, TERBLY G21 HYBRID, Elation Artiste V21BS, Elation Proteus Hybrid V21BS IP, Terbly G12WB, Elation Proteus Hybrid WMG PRH135, Elation Proteus Hybrid PRH021, Elation Artiste V21BS


While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
