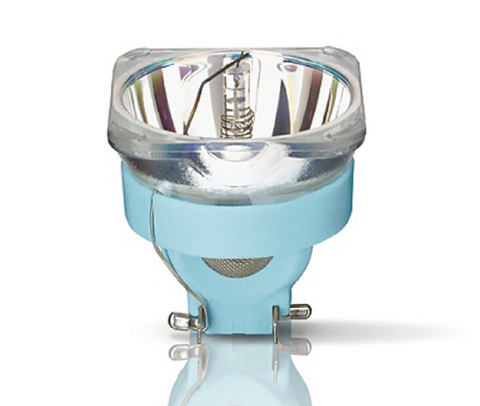

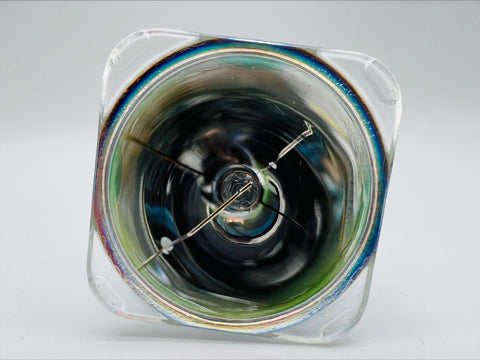

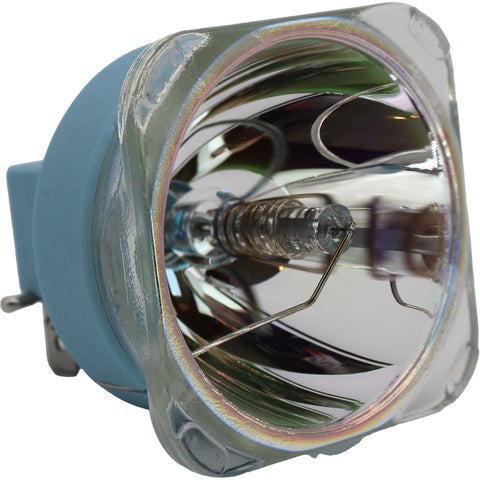

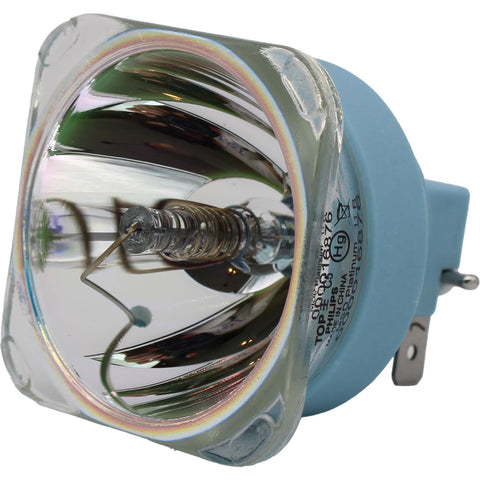

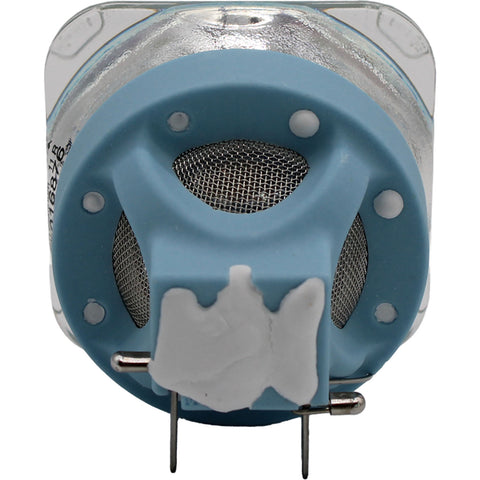

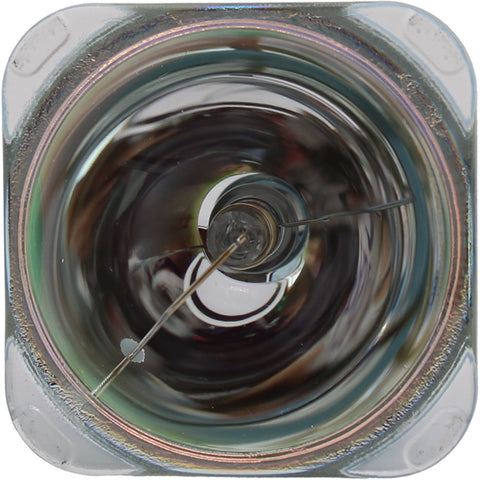

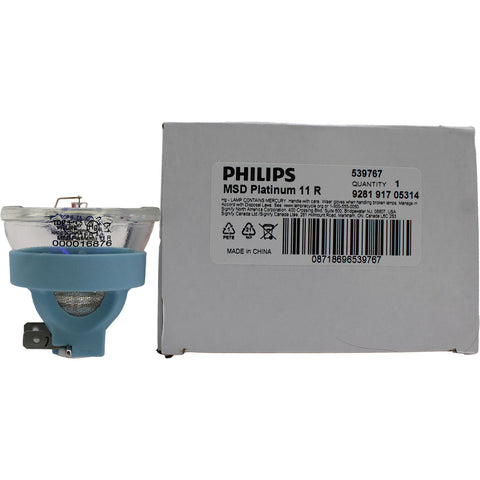

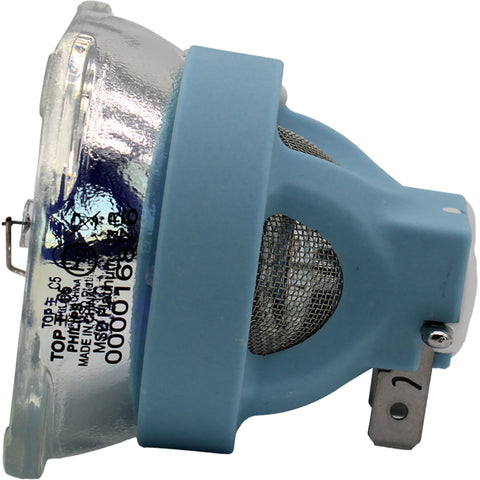

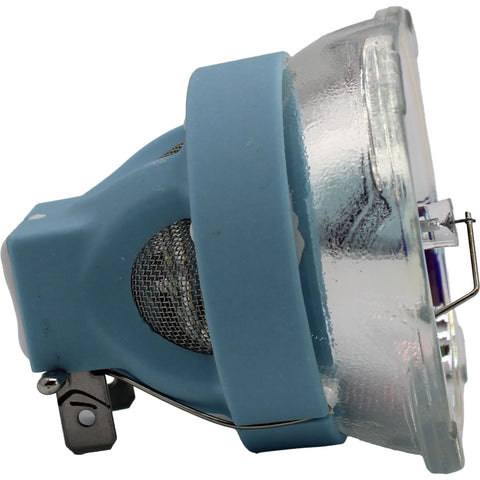

Philips MSD Platinum 11R Stage Touring Broadway Lamp - 303628
Original Philips lamp Inside! Guaranteed Original Philips Lighting! Free Shipping!

Philips MSD Platinum 11R Stage Touring Broadway Lamp - 303628

  • $ 139.99
  • Save $ 160.00




The new MSD Platinum 11 R lamps open up new levels of creative freedom in entertainment lighting, with powerful, compact and brilliantly intense light. Their compact, lightweight design provides the freedom to create smaller, lighter luminaires – for use at any location on stage. And their short arc, high color temperature and innovative reflector produce a sparkling, high beam intensity for outstanding color reproduction. They also offer long and reliable lifetime, high efficacy and fast replacement times. It all adds up to an intensely exciting creative experience.

Philips MSD Platinum 11 R Specifications:

General Information

Cap-Base
-  [ -]
Operating Position
UNIVERSAL  [ Any or Universal (U)]
Main Application
Stage/Touring
Life to 50% Failures (Nom)
2000 h
System Description
Reflector-E20.9

Light Technical

Color Code
2
Luminous Flux (Nom)
12000 lm
Chromaticity Coordinate X (Nom)
0.300
Chromaticity Coordinate Y (Nom)
0.305
Correlated Color Temperature (Nom)
7800 K
Color Rendering Index (Nom)
-

Operating and Electrical

Power (Rated) (Nom)
250 W
Voltage (Max)
80 V
Voltage (Min)
55 V

Controls and Dimming

Dimmable
Yes

Mechanical and Housing

Cap-Base Information
-

Luminaire Design Requirements

Pinch Temperature (Max)
350 °C

Product Data

Full product code
871869653976700
Order product name
MSD Platinum 11 R
EAN/UPC - Product
8718696539767
Order code
53976700
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
8
Material Nr. (12NC)
928191705314
Net Weight (Piece)
85.000 g
This bulb is used in many custom applications as well as the following:
Martin Professional RUSH MH-7 Hybrid, PR Lighting PR-2206, PR Lighting XR 250 Beam II, PR XR 250 Beam II


While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.

If you have any questions do not hesitate to contact us at products@jaspertronics.com
Buy Smart, Buy Bright, Buy Jaspertronics!
MSD Platinum 11 R Philips 303628 Cross Ref: MSD Platinum 11 R Philips 30362-8 LMSDPLAT11R-P YODN MSD 260R9 9 R 9R MSD Platinum - The power to light your creativity The Philips MSD Platinum 11 R is a compact and powerful lamp which is perfect for small and lightweight fixtures. It features a short arc, high colour temperature and an innovative reflector which produces a sparkling, high beam intensity for outstanding colour reproduction. Product Specification Code: 928191705314 Wattage: 250W Voltage: 55V-80V Flux: 12,000LM Colour temp: 7,800K Average Life: 2,000 hours Burning position: Any Dimmable: Yes TECHNICAL DETAILS Product Type :LAMP / BULB Technology :HID / HIGH INTENSITY DISCHARGE ELECTRICAL PROPERTIES Watts :250W Volts :80V PHYSICAL CHARACTERISTICS Shape :E20.9 REFLECTOR Ends :SINGLE ENDED Overall Length (mm/") :53MM Diameter (mm/") :51.5MM LIGHT OUTPUT MEASUREMENT Initial Lumens :12000L COLOR CHARACTERISTICS CC Temp / Kelvin :7800K LIFE :2000H PART NUMBERS & ORDERING INFORMATION Part # : PHMSDPLAT11RBT Description : PH MSD PLATINUM 11 R 1CT/8BT Ordering Code : 0095599Mfg :PHILIPS Mfg Prod Description : MSD PLATINUM 11 R 1CT/8 Mfg Ordering Code :92819170531 Trade Name :MSD PLATINUM (TOURING / STAGE) Quantity Per Case: 1 Martin Professional RUSH MH-7 Hybrid Martin Professional RUSH MH 11 Beam PR Lighting PR-2206 PR Lighting XR 250 Beam II PR XR 250 Beam II BMH-250 BMH-350 HC-M265 LS-M210 MME250 / MME250-220 PCS-UMX250
