Philips MSD Platinum 14R Broadway Lamp – 280W, 12,350 lm, 7800K, Dimmable, 2,000 hr - 261503
8 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 12350 Lumens
- 2000 Hours
- 280 Watts
Philips MSD Platinum 14R Broadway Lamp (261503) – 280W, 12,350 lm, 7800K, Dimmable
Broadway-ready Platinum 14R performance—12,350 lumens at 7800K with universal positioning, dimmable control, and 2,000-hour life to 50% failures.
High-Intensity Output
12,350 lumens for powerful beams and strong throw in professional moving head fixtures.
12,350 lumens for powerful beams and strong throw in professional moving head fixtures.
Crisp, Cool White Light
7800K color temperature for clean, punchy looks on stage and in venues.
7800K color temperature for clean, punchy looks on stage and in venues.
Compact Arc for Sharp Projection
1.0mm arc length supports crisp projection and clean optical performance.
1.0mm arc length supports crisp projection and clean optical performance.
Longer Service Life
2,000 hours (life to 50% failures) helps reduce relamping frequency and downtime.
2,000 hours (life to 50% failures) helps reduce relamping frequency and downtime.
Flexible Operation
Universal operating position plus dimmable performance for modern touring rigs and programming.
Universal operating position plus dimmable performance for modern touring rigs and programming.
| Specifications | |
|---|---|
| Lamp Type | MSD Platinum (short-arc discharge) |
| Model / Part Number | MSD Platinum 14R / 261503 |
| Power Consumption | 280 W |
| Luminous Flux | 12,350 lm |
| Correlated Color Temperature (CCT) | 7800 K (nom) |
| Chromaticity (x, y) | x = 0.300 (nom), y = 0.315 (nom) |
| Arc Length | 1.0 mm (nom) |
| Operating Position | Universal (Any / U) |
| Life to 50% Failures | 2,000 hour(s) (nom) |
| Dimmable | Yes |
| Net Weight | 80.000 g |
| Order Product Name | MSD Platinum 14 R 1CT/8 |
| Full Product Code | 871869644061200 |
| Order Code | 928196105314 |
| Material Nr. (12NC) | 928196105314 |
| Quantity Per Pack | 1 |
| EAN/UPC | 8718696440612 |
| Cap-Base | - |
Works With / Compatible Fixtures
This bulb works in many applications including the following:
- Elation Professional Platinum HFX
- Elation Professional Proteus Beam V14B IP
- Elation Professional Sniper Pro
- PRG Icon Beam
- Terbly G14B-IP
- Terbly G9 Hybrid
- Terbly G9B
- ACME XP-280 BS
What's in the Box
- Philips MSD Platinum 14R Broadway Lamp (261503)
- Protective packaging
- Product documentation (as included by manufacturer)
Why Choose the Philips MSD Platinum 14R?
- 12,350 lumens of high-intensity output for powerful beams and long throw.
- 7800K color temperature for clean, crisp looks in Broadway and touring applications.
- 1.0mm arc length supports sharp projection and clean optics performance.
- Universal operating position plus dimmable performance for flexible programming.
- 2,000-hour life to 50% failures helps reduce downtime and maintenance.

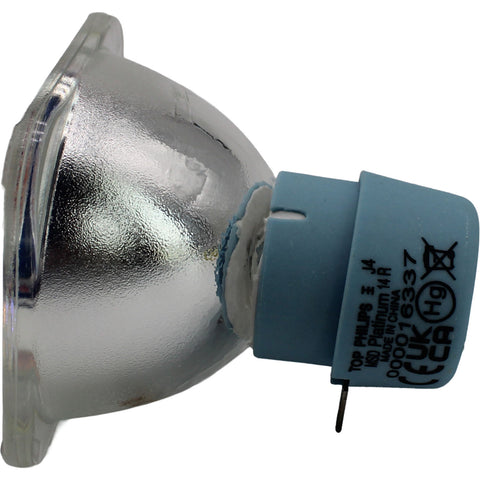

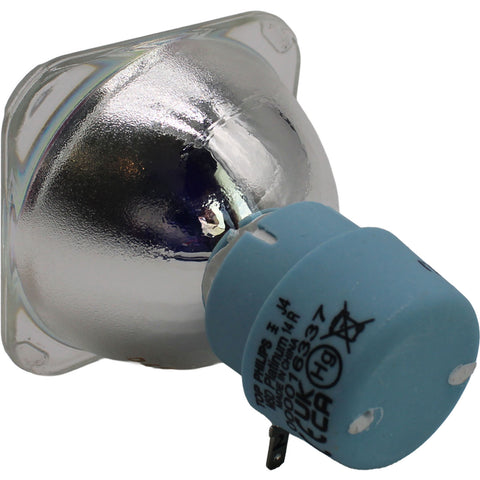

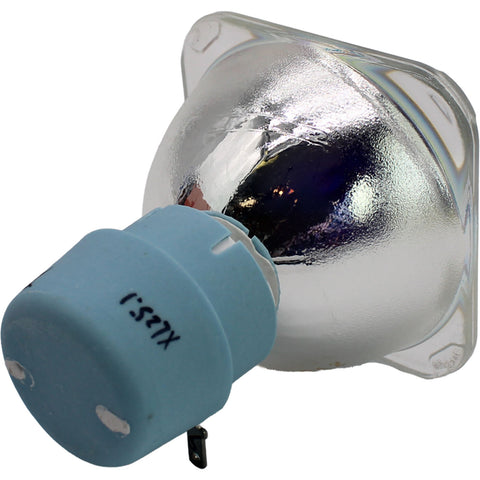

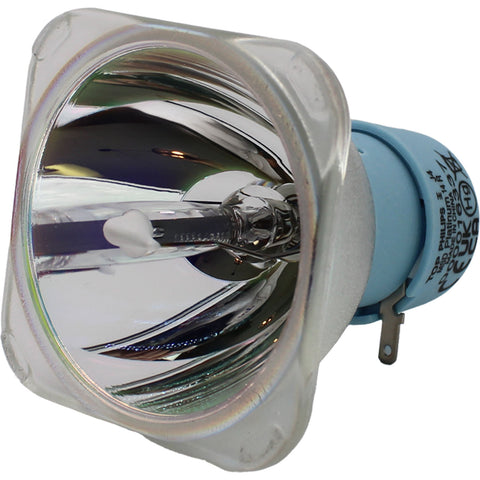

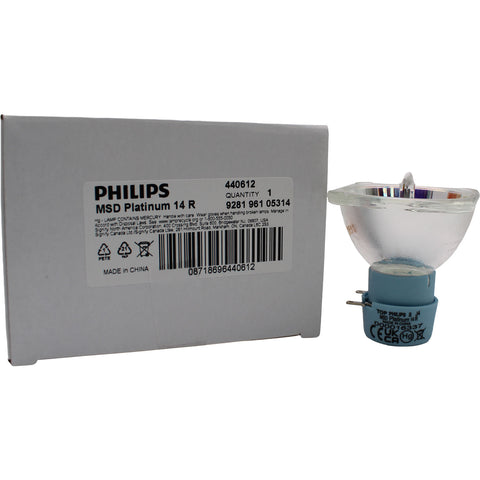

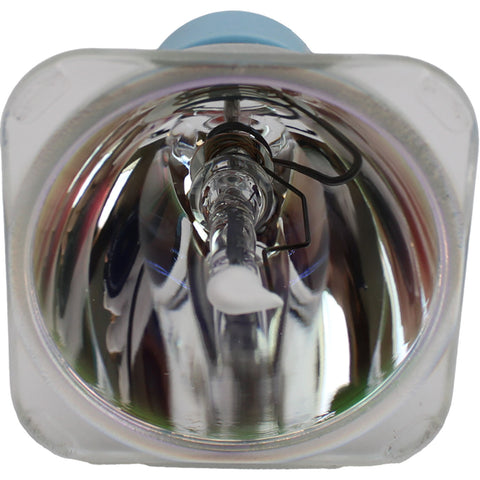

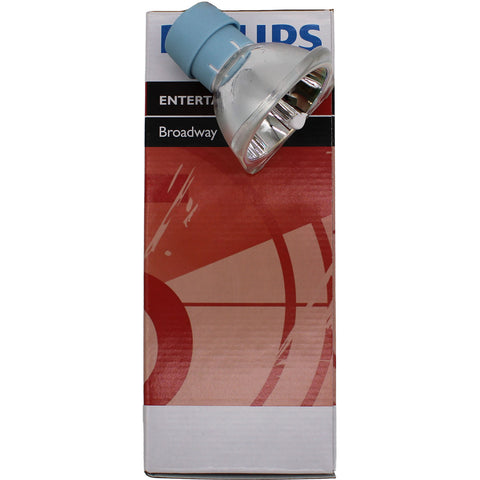

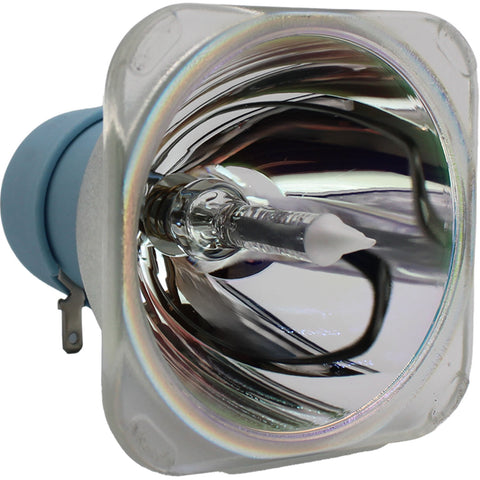

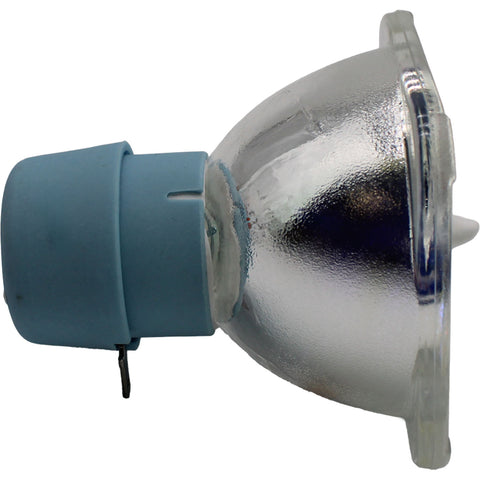

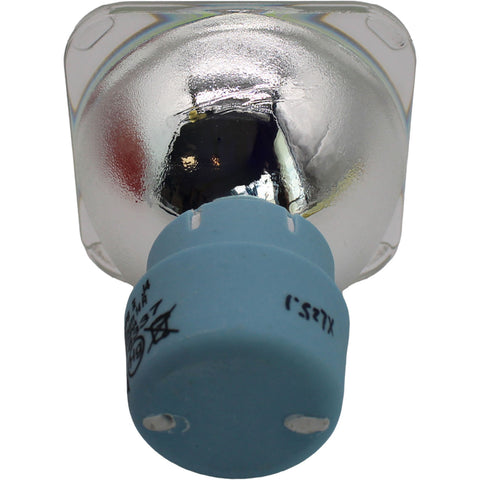

Product Gallery
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the 261503 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
