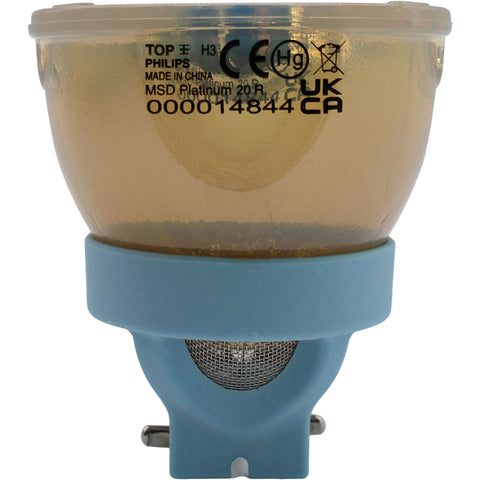

Philips MSD Platinum 20R Stage Touring Broadway Lamp
Original Philips lamp Inside! Guaranteed Original Philips Lighting! Free Shipping!

Philips MSD Platinum 20R Stage Touring Broadway Lamp

  • $ 329.99
  • Save $ 170.00


The MSD Platinum lamps open up new levels of creative freedom in entertainment lighting, with powerful, compact and brilliantly intense light. Their compact, lightweight design provides the freedom to create smaller, lighter luminaires – for use at any location on stage. And their short arc, high color temperature and innovative reflector produce a sparkling, high beam intensity for outstanding color reproduction. They also offer long and reliable lifetime, high efficacy and fast replacement times. It all adds up to an intensely exciting creative experience.

Philips MSD Platinum 20R Specifications:

General Information
Cap-Base
-  [ -]
Operating Position
Universal  [ Universal]
Main Application
Stage/Touring
Life to 50% Failures (Nom)
1500 h
System Description
Reflector E21.9 TCM
Light Technical
Color Code
2
Initial lumen (Nom)
22400 lm
Chromaticity Coordinate X (Max)
314
Chromaticity Coordinate X (Min)
280
Chromaticity Coordinate X (Nom)
296
Chromaticity Coordinate Y (Max)
316
Chromaticity Coordinate Y (Min)
290
Chromaticity Coordinate Y (Nom)
298
Correlated Color Temperature (Nom)
8000 K
Luminous Efficacy (rated) (Nom)
47 lm/W
Color Rendering Index (Nom)
-
Operating and Electrical
Power (Rated) (Nom)
470 W
Voltage (Max)
110 V
Voltage (Min)
85 V
Controls and Dimming
Dimmable
Yes
Mechanical and Housing
Cap-Base Information
na  [ -]
Luminaire Design Requirements
Bulb Temperature (Max)
900 °C
Pinch Temperature (Max)
350 °C
Product Data
Full product code
871829176888300
Order product name
MSD Platinum 20 R
EAN/UPC - Product
8718291768883
Order code
259200
Numerator - Quantity Per Pack
1
Material Nr. (12NC)
928197205308
Net Weight (Piece)
136.600 g



This bulb is used in many custom applications as well as the following:
Clay Paky Mythos, Clay Paky Super Sharpy, Elation Platinum FLX, Terbly G12 Hybrid MKII, ACME XP-20R, FINEART FINE 470BEAM, FINEART FINE 470BSW, TERBLY G12WB BEAM & WASH
