Philips MSD Platinum 12R LL Touring/Stage Lamp – 260W, 17,100 lm, 7800K, Dimmable - 928496705314
9 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 17100 Lumens
- 2000 Hours
- 260 Watts
Philips MSD Platinum 12R LL Touring / Stage Lamp (928496705314) – 260W, 17,100 lm, 7800K, Dimmable
High-output, long-life Platinum 12R LL performance—up to 17,100 lumens at 7800K with universal positioning and dimmable control for beam fixtures.
High-Intensity Output
Up to 17,100 lumens for powerful beams and strong throw in professional moving head fixtures.
Up to 17,100 lumens for powerful beams and strong throw in professional moving head fixtures.
Long-Life (LL) Advantage
2,000 hours life to 50% failures, plus 6,000 hours in an entertainment cycle to reduce relamping.
2,000 hours life to 50% failures, plus 6,000 hours in an entertainment cycle to reduce relamping.
Crisp, Cool White Light
7800K color temperature for clean, punchy looks on stage and in venues.
7800K color temperature for clean, punchy looks on stage and in venues.
Compact Arc for Sharp Projection
0.95mm arc length supports crisp projection and clean optical performance.
0.95mm arc length supports crisp projection and clean optical performance.
Flexible Operation
Universal operating position plus dimmable performance for modern touring rigs and programming.
Universal operating position plus dimmable performance for modern touring rigs and programming.
| Specifications | |
|---|---|
| Lamp Type | MSD Platinum (short-arc discharge) |
| Order Product Name | MSD Platinum 12 R LL 1CT/8 |
| Order Code / Material Nr. (12NC) | 928496705314 |
| Full Product Code | 871869968354200 |
| Power Consumption | 260 W |
| Luminous Flux | 17,100 lm (nom) / 15,000 lm (min) |
| Correlated Color Temperature (CCT) | 7800 K (nom) |
| Chromaticity (x, y) | x = 303 (nom), y = 309 (nom) |
| Arc Length | 0.95 mm (nom) |
| Operating Position | Universal (Any / U) |
| Life to 50% Failures | 2,000 hour(s) (nom) |
| Life to 50% Failures (Entertainment Cycle) | 6,000 hour(s) (nom) |
| Dimmable | Yes |
| Net Weight | 72.000 g |
| Cap-Base | - |
Works With / Compatible Fixtures
This bulb works in many applications including the following:
- ACME ORION XP-260 BEAM
- American DJ Vizi Beam 12RX (VIZ120)
- ADJ Vizi Beam 12RX
What's in the Box
- Philips MSD Platinum 12R LL Touring / Stage Lamp (928496705314)
- Protective packaging
- Product documentation (as included by manufacturer)
Why Choose the Philips MSD Platinum 12R LL?
- Up to 17,100 lumens for bright beams and strong throw.
- LL (Long Life) design: 2,000 hours to 50% failures and 6,000 hours in an entertainment cycle.
- 7800K color temperature for clean, crisp looks in touring and venue applications.
- 0.95mm arc length supports sharp projection and clean optics performance.
- Universal operating position plus dimmable performance for flexible programming.

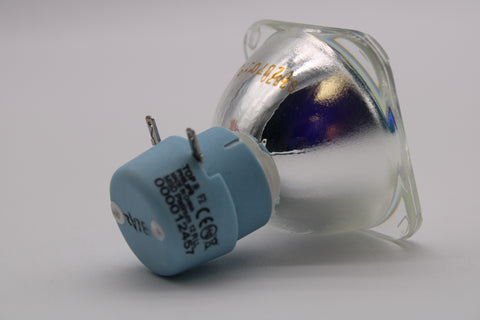

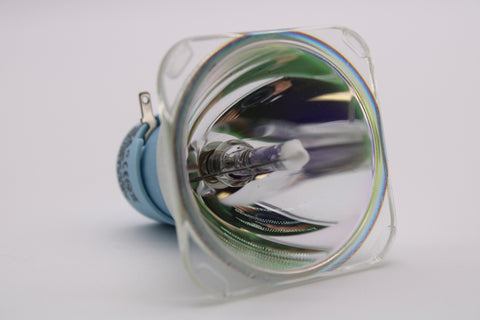

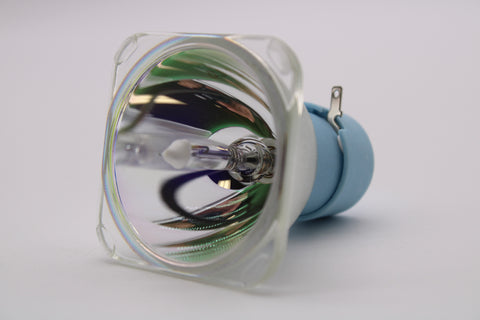

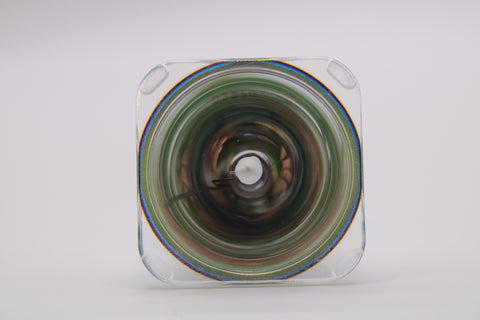

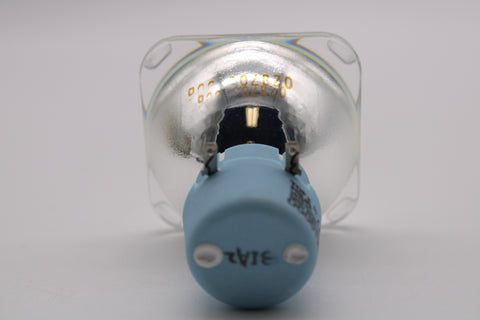

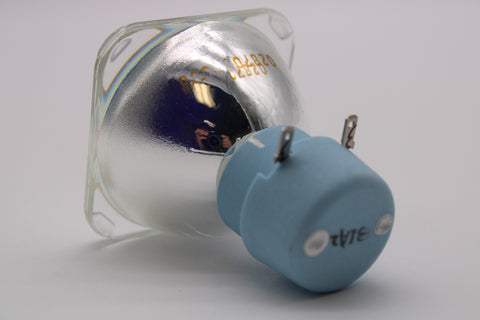

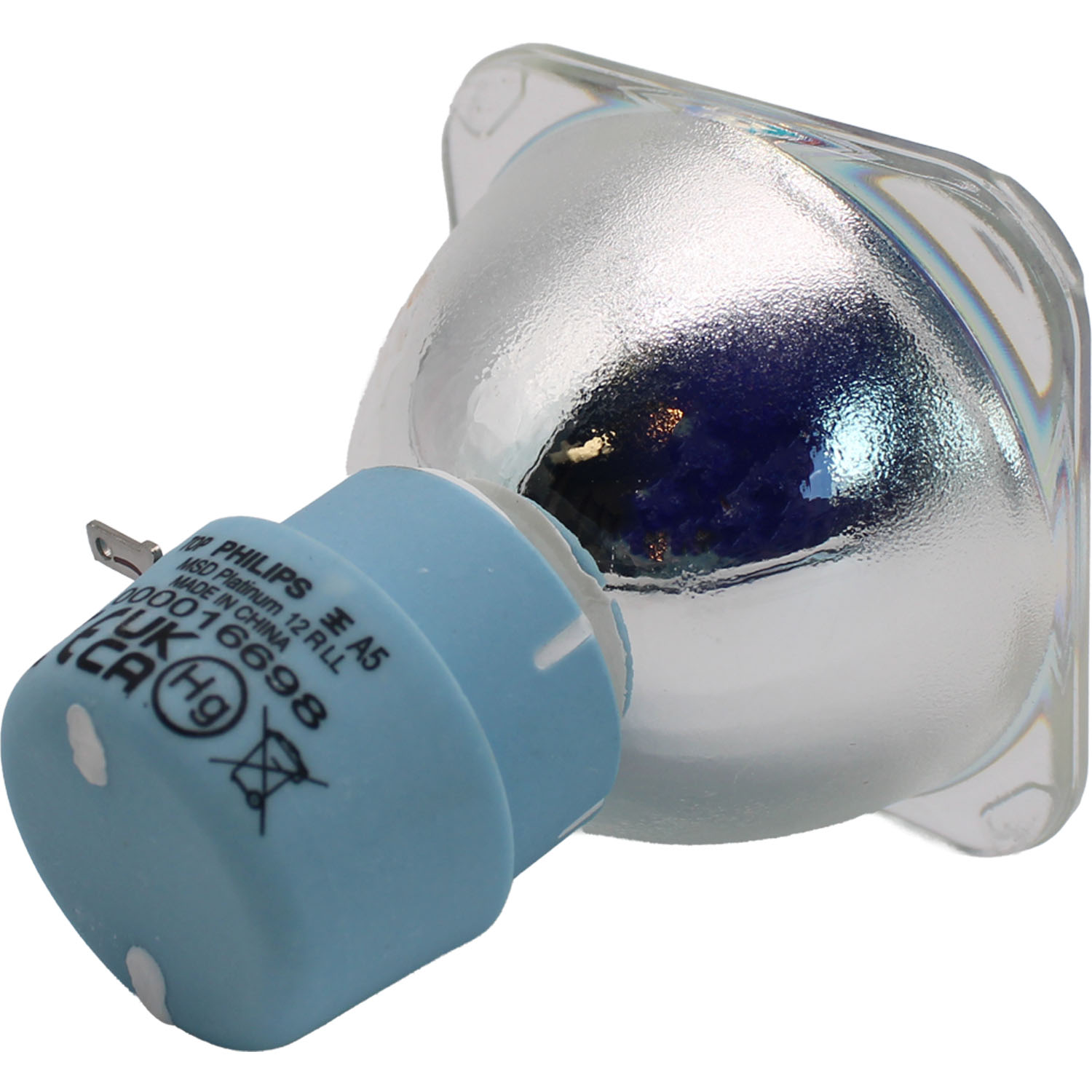

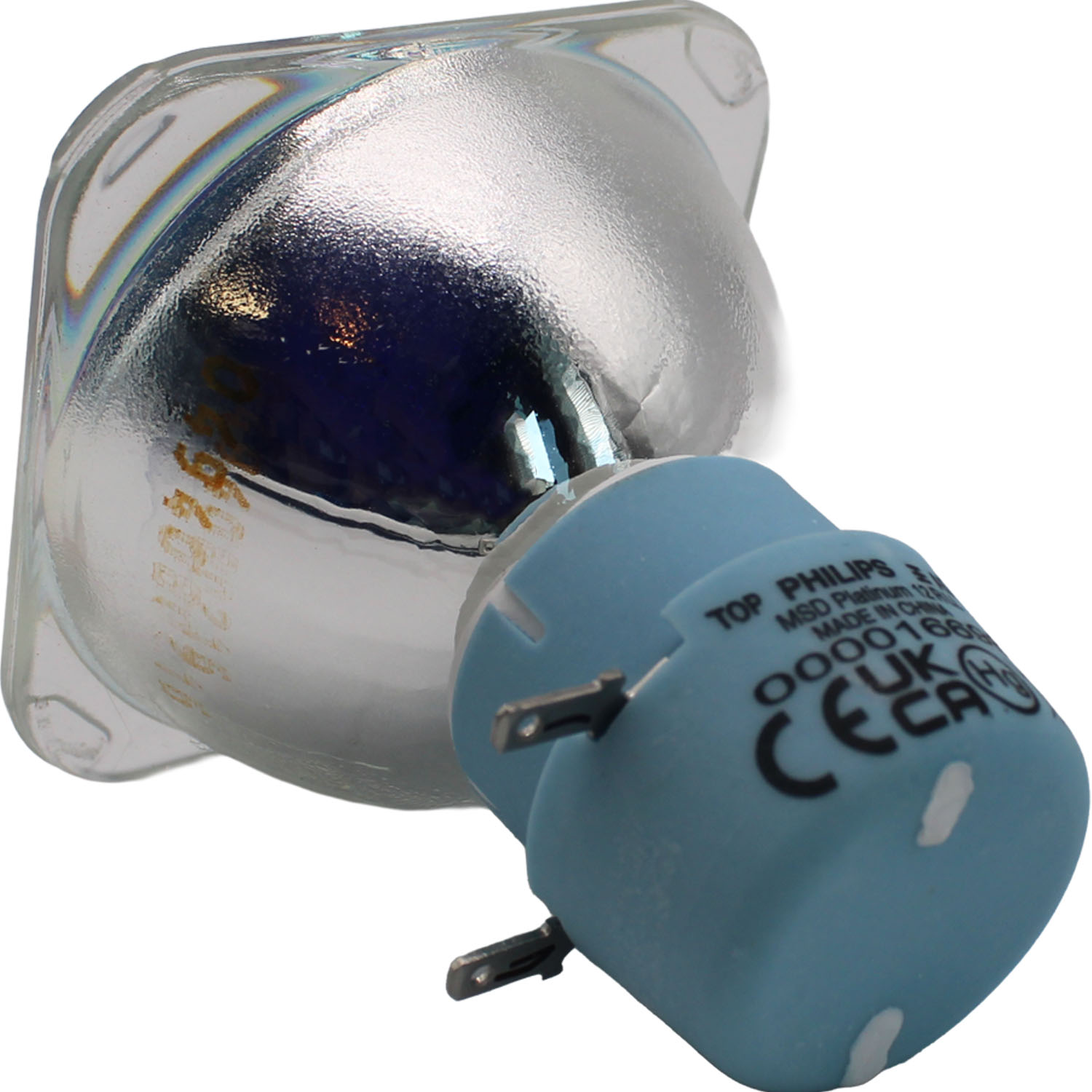

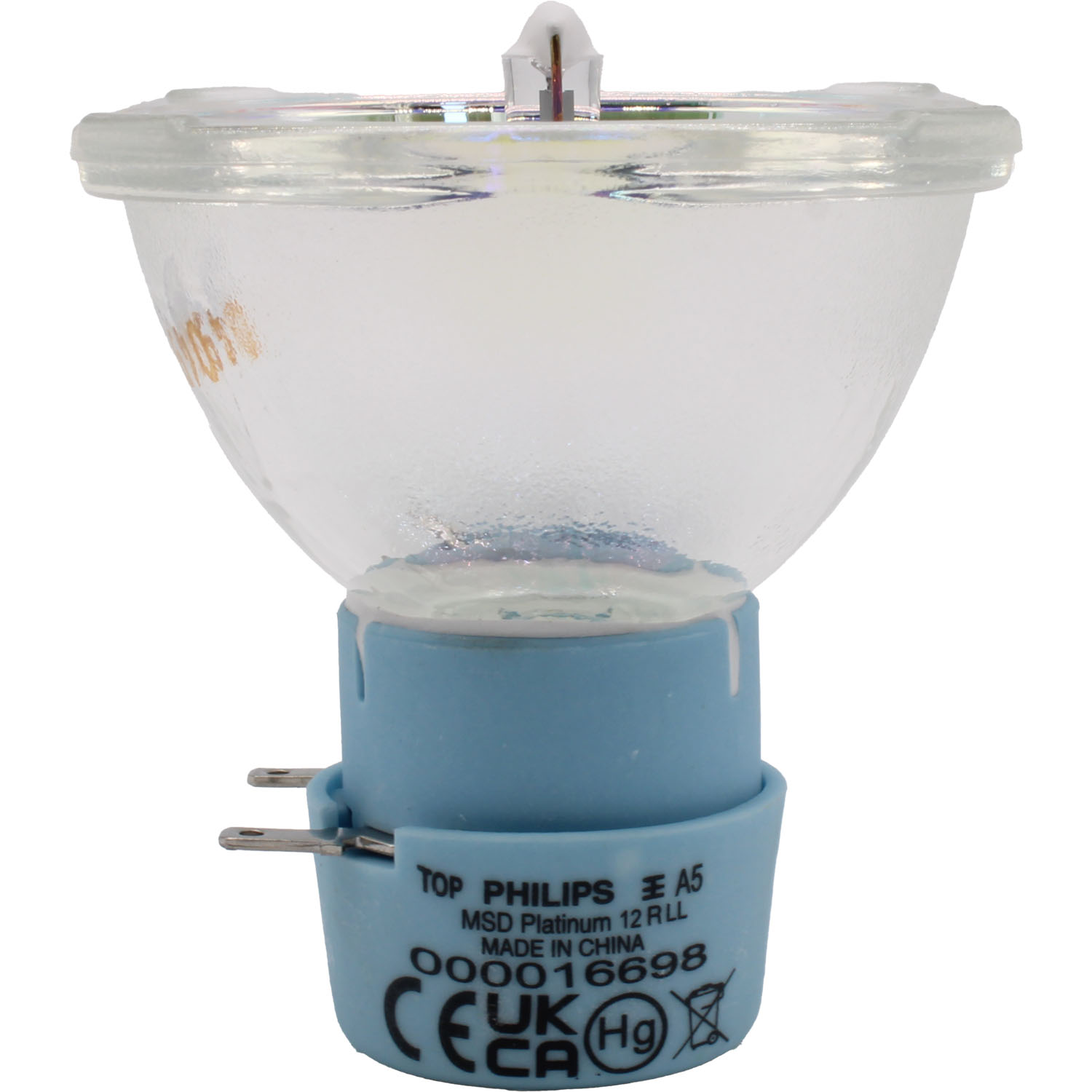

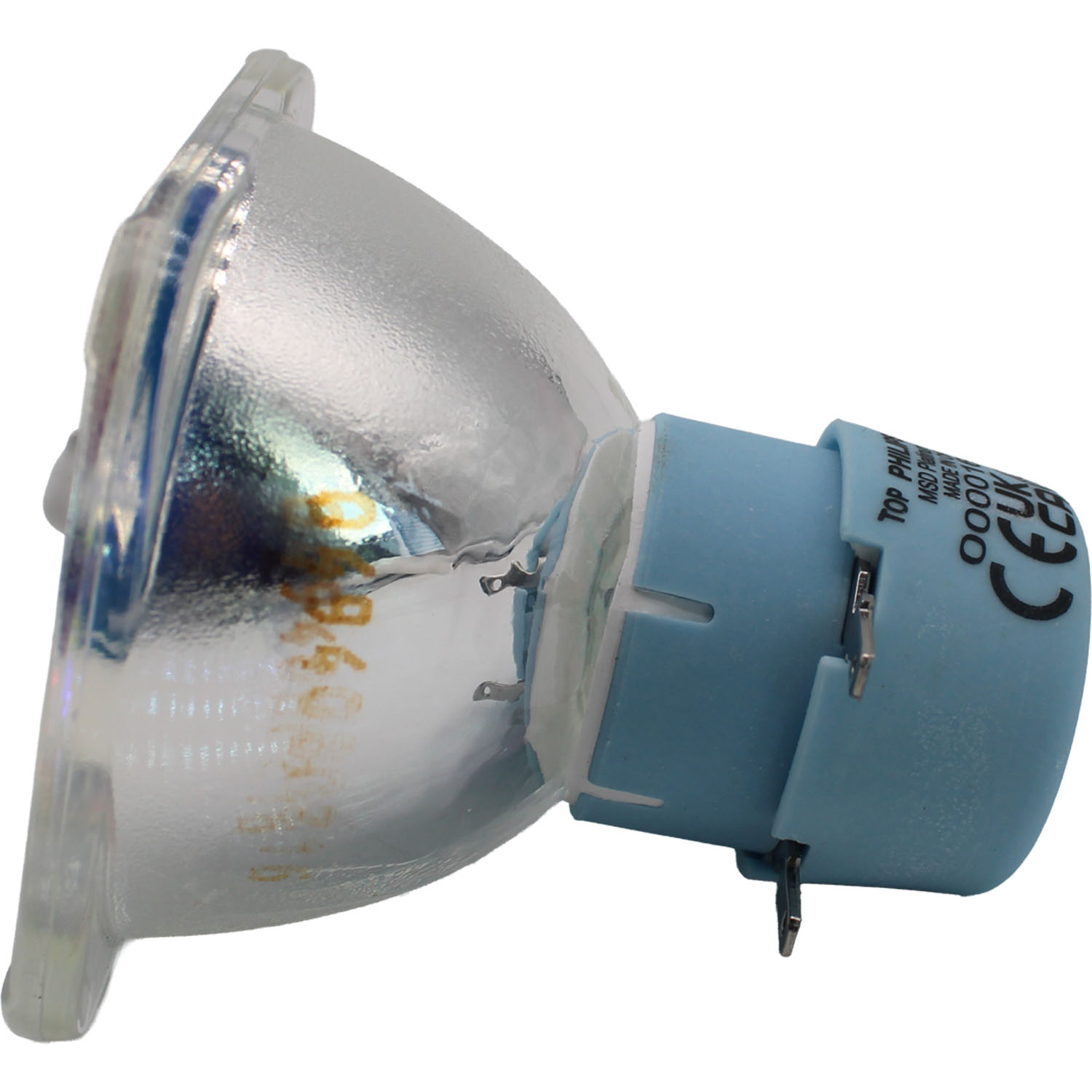

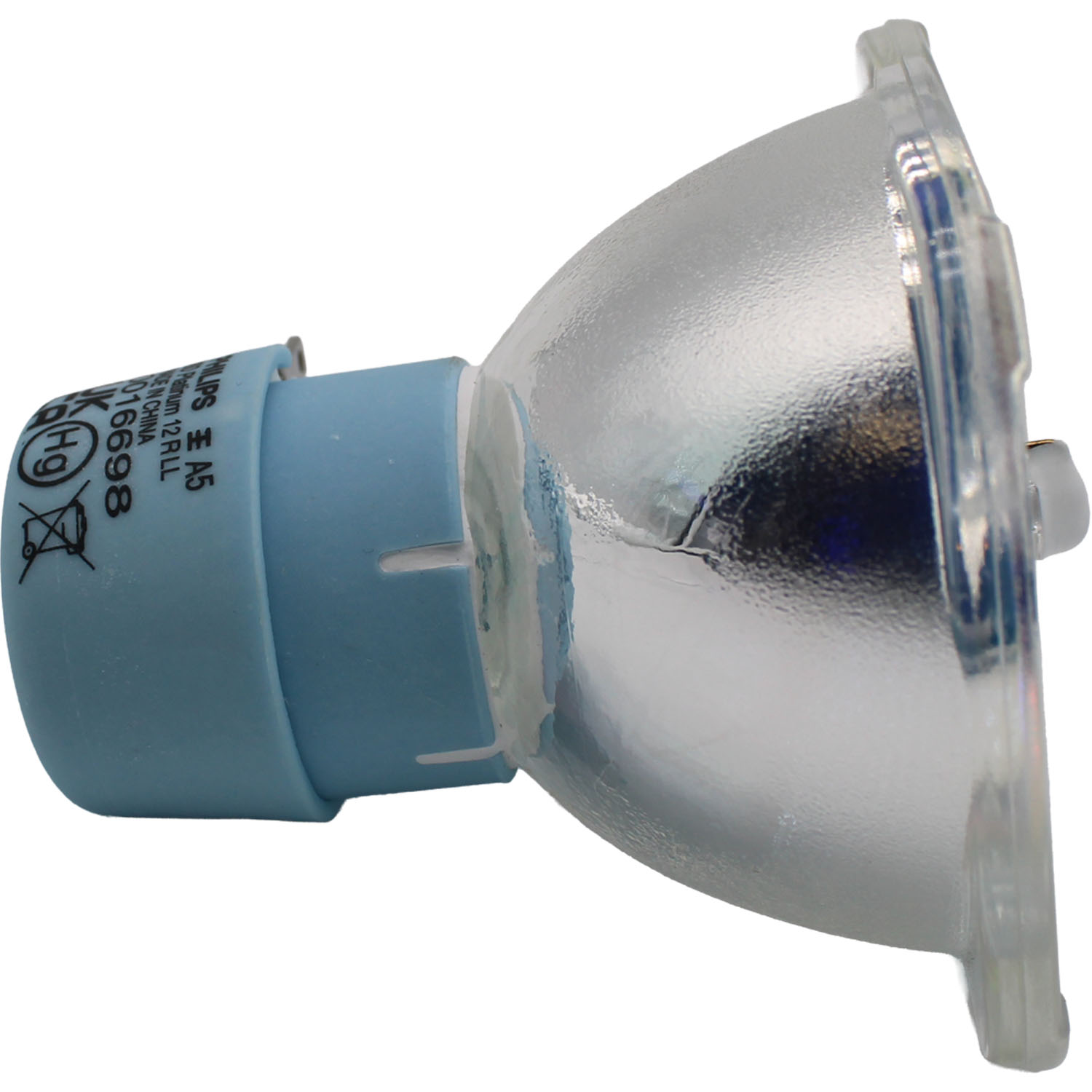

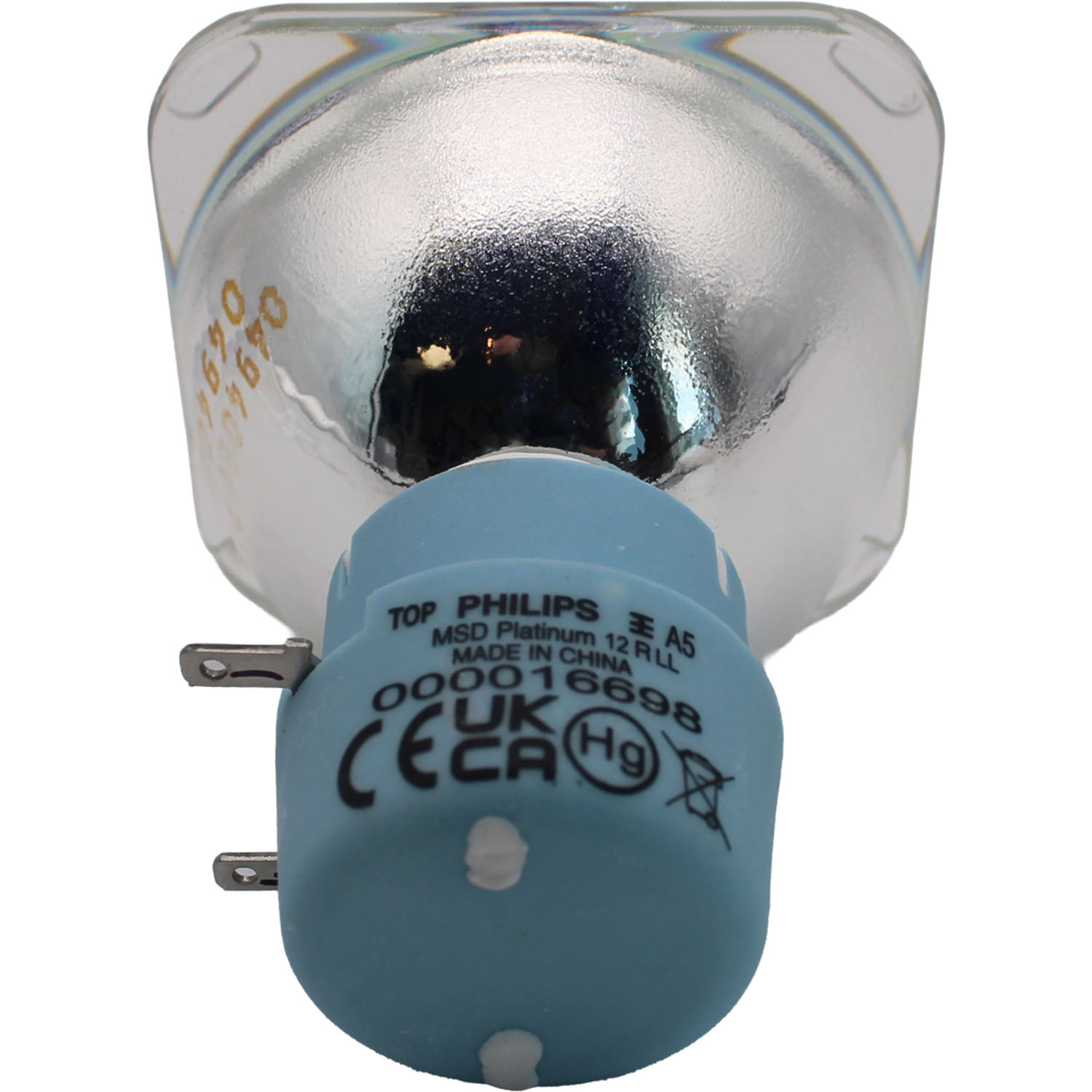

Product Gallery
