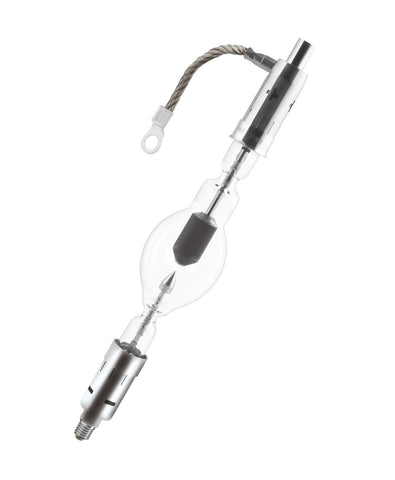

OSRAM XBO 7000W/HPN OFR Xenon Cinema Lamp for NEC, DC 41V 170A, LCL 171.5mm, 400h Life - 55227
5 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 7000 Watts
OSRAM XBO 7000W/HPN OFR Xenon Cinema Lamp (55227)
7000W xenon short-arc lamp for select NEC digital cinema projectors
7.0kW DC xenon lamp with LCL 171.5mm for compatible NEC cinema projection systems.
High-Power 7kW Output
Designed for demanding cinema projection environments and large screens.
Designed for demanding cinema projection environments and large screens.
Stable Electrical Ratings
41V, 170A nominal with 135–175A current control range.
41V, 170A nominal with 135–175A current control range.
Correct Optical Geometry
LCL 171.5 mm and 7.5 mm electrode gap (cold) support proper alignment.
LCL 171.5 mm and 7.5 mm electrode gap (cold) support proper alignment.
Booth-Ready Requirements
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Fitment Details Included
78 mm diameter, 428 mm length, connector present, 235 mm input cable.
78 mm diameter, 428 mm length, connector present, 235 mm input cable.
| Specifications | |
|---|---|
| Brand / Family | OSRAM XBO |
| Product Number (Americas) | 55227 |
| Product Name (Americas) | XBO 7000W/HPN 1/CS 1/SKU |
| Global Order Reference | XBO 7000 W/HPN OFR |
| Nominal Wattage | 7000 W |
| Nominal Voltage | 41 V |
| Nominal Current | 170 A |
| Current Control Range | 135–175 A |
| Light Center Length (LCL) | 171.5 mm |
| Electrode Gap (cold) | 7.5 mm |
| Base (Anode) | SFaX30-9.5 |
| Base (Cathode) | SFa30-20 |
| Diameter | 78.0 mm |
| Length | 428.0 mm |
| Length w/ base excl. pins/connection | 389.0 mm |
| Cable/Wire Length (input side) | 235 mm |
| Connector Present | Yes |
| Product Weight | 1023 g |
| Burning Position | s15/p15 |
| Cooling | Forced |
| Max Ambient Temp (pinch point) | 230 °C |
| Nominal Lifetime | 400 hr |
| Warranty Hours | 300 hrs |
| Service Warranty Lifetime | 500 hr |
| REACh Primary Article Identifier | 4062172031691 |
Compatible NEC Projectors (per provided list)
- NEC Digital Cinema 2500S
- NEC Digital Cinema 3200S
- NEC Digital Cinema 3240S
Box Contents
- 1 × OSRAM XBO 7000W/HPN OFR Xenon Cinema Lamp (55227)

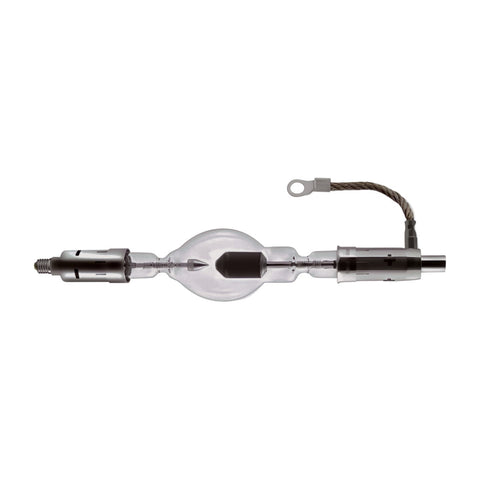

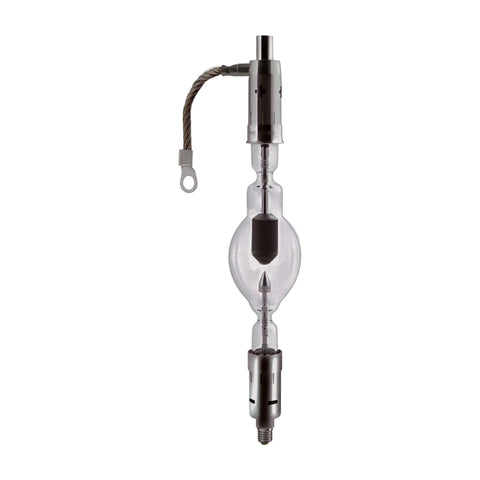

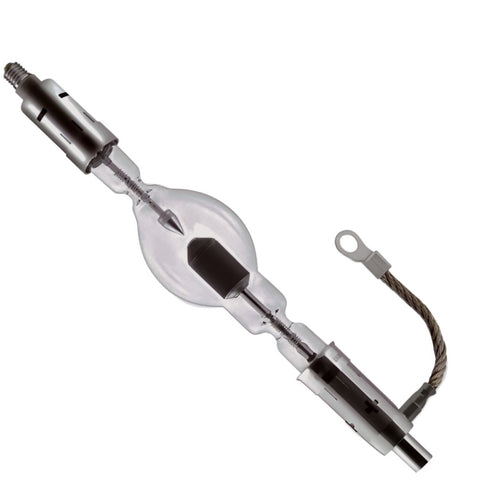

Product Gallery
Please note: Xenon lamps that must be configured or calibrated before shipment cannot be returned.
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the 55227 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
