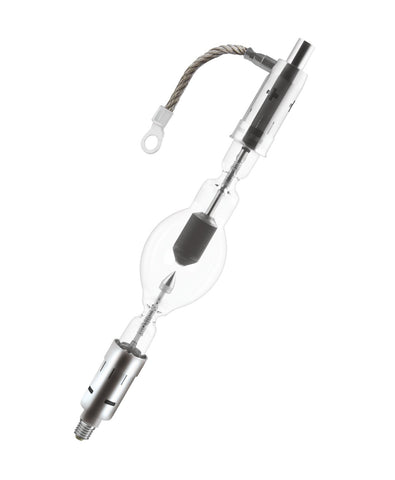

OSRAM XBO 7000W/DHP OFR Xenon Cinema Lamp for Barco, DC 41V 170A, LCL 170.5mm, 400h Life - 55226

5 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596
  • $ 1,209.99
  • Save $ 790.00




  • Important Specs
  • 7000 Watts

OSRAM XBO 7000W/DHP OFR Xenon Cinema Lamp (55226)

7000W xenon short-arc lamp for select Barco digital cinema projectors

OSRAM XBO 7000W/DHP OFR 55226 xenon cinema lamp

7.0kW DC xenon lamp with LCL 170.5mm for compatible Barco cinema projection systems.

High-Power 7kW Output
Designed for demanding cinema projection environments and large screens.
Stable Electrical Ratings
41V, 170A nominal with 130–175A current control range.
Correct Optical Geometry
LCL 170.5 mm and 7.5 mm electrode gap (cold) support proper alignment.
Booth-Ready Requirements
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Fitment Details Included
78 mm diameter, 436 mm length, connector present, 155 mm input cable.
Specifications
Brand / Family OSRAM XBO
Product Number (Americas) 55226
Product Name (Americas) XBO 7000W/DHP 1/CS 1/SKU
Global Order Reference XBO 7000W/DHP OFR
Nominal Wattage 7000 W
Nominal Voltage 41 V
Nominal Current 170 A
Current Control Range 130–175 A
Light Center Length (LCL) 170.5 mm
Electrode Gap (cold) 7.5 mm
Base (Anode) SFaX30-9.5
Base (Cathode) SFa30-7.9
Diameter 78.0 mm
Length 436.0 mm
Length w/ base excl. pins/connection 393.0 mm
Cable/Wire Length (input side) 155 mm
Connector Present Yes
Product Weight 1023 g
Burning Position s15/p15
Cooling Forced
Max Ambient Temp (pinch point) 230 °C
Nominal Lifetime 400 hr
Warranty Hours 300 hrs
Service Warranty Lifetime 500 hr
REACh Primary Article Identifier 4062172031707

Compatible Barco Projectors (per provided list)

  • Barco Digital Cinema DP2K-32B
  • Barco Digital Cinema DP4K-32B
  • Barco Digital Cinema 90
  • Barco Digital Cinema 100
  • Barco Digital Cinema 3000

Box Contents

  • 1 × OSRAM XBO 7000W/DHP OFR Xenon Cinema Lamp (55226)

Product Gallery

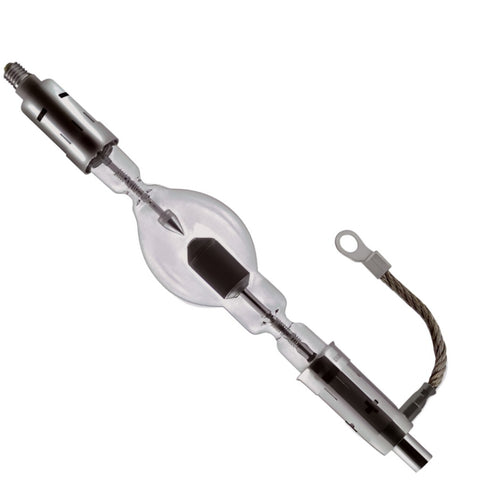

OSRAM XBO 7000W/DHP OFR 55226 main image

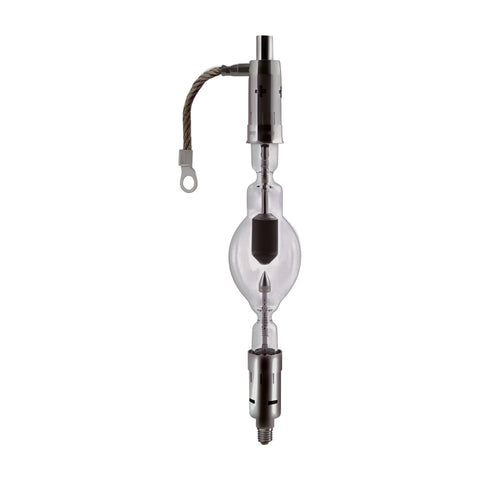

OSRAM XBO 7000W/DHP OFR image 2
OSRAM XBO 7000W/DHP OFR image 3
OSRAM XBO 7000W/DHP OFR image 4
OSRAM XBO 7000W/DHP OFR image 5
