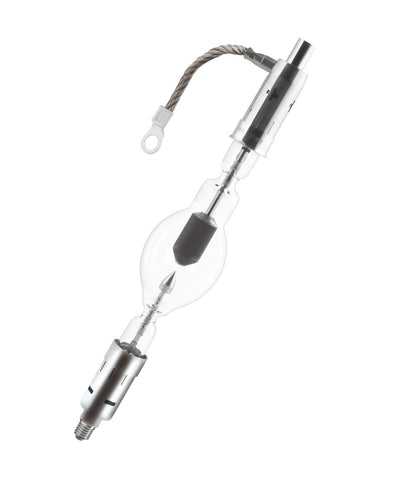

OSRAM XBO 6500W/DHP XL OFR Xenon Cinema Lamp for Barco, DC 39V 165A, LCL 170.5mm, 900h Life - 55225
5 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 6500 Watts
OSRAM XBO 6500W/DHP XL OFR Xenon Cinema Lamp (55225)
6500W xenon short-arc lamp for select Barco digital cinema projectors
6.5kW DC xenon lamp with LCL 170.5mm and extended 900-hour nominal life for compatible Barco systems.
High-Power Output
6500W xenon short-arc lamp for demanding cinema projection environments.
6500W xenon short-arc lamp for demanding cinema projection environments.
Stable Electrical Ratings
39V, 165A nominal with 133–173A current control range.
39V, 165A nominal with 133–173A current control range.
Correct Optical Geometry
LCL 170.5 mm and 8.0 mm electrode gap (cold) support proper alignment.
LCL 170.5 mm and 8.0 mm electrode gap (cold) support proper alignment.
Booth-Ready Requirements
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Fitment Details Included
78 mm diameter, 436 mm length, connector present, 155 mm input cable.
78 mm diameter, 436 mm length, connector present, 155 mm input cable.
| Specifications | |
|---|---|
| Brand / Family | OSRAM XBO |
| Product Number (Americas) | 55225 |
| Product Name (Americas) | XBO 6500W/DHP XL 1/CS 1/SKU |
| Global Order Reference | XBO 6500 W/DHP XL OFR |
| Nominal Wattage | 6500 W |
| Nominal Voltage | 39 V |
| Nominal Current | 165 A |
| Current Control Range | 133–173 A |
| Light Center Length (LCL) | 170.5 mm |
| Electrode Gap (cold) | 8.0 mm |
| Base (Anode) | SFaX30-9.5 |
| Base (Cathode) | SFa30-7.9 |
| Diameter | 78.0 mm |
| Length | 436.0 mm |
| Length w/ base excl. pins/connection | 393.0 mm |
| Cable/Wire Length (input side) | 155 mm |
| Connector Present | Yes |
| Product Weight | 1023 g |
| Burning Position | s15/p15 |
| Cooling | Forced |
| Max Ambient Temp (pinch point) | 230 °C |
| Nominal Lifetime | 900 hr |
| Warranty Hours | 800 hrs |
| Service Warranty Lifetime | 1000 hr |
| REACh Primary Article Identifier | 4052899593640 | 4062172031684 |
Compatible Barco Projectors (per provided list)
- Barco Digital Cinema DP2K-32B
- Barco Digital Cinema DP4K-32B
- Barco Digital Cinema 90
- Barco Digital Cinema 100
- Barco Digital Cinema 3000
Box Contents
- 1 × OSRAM XBO 6500W/DHP XL OFR Xenon Cinema Lamp (55225)

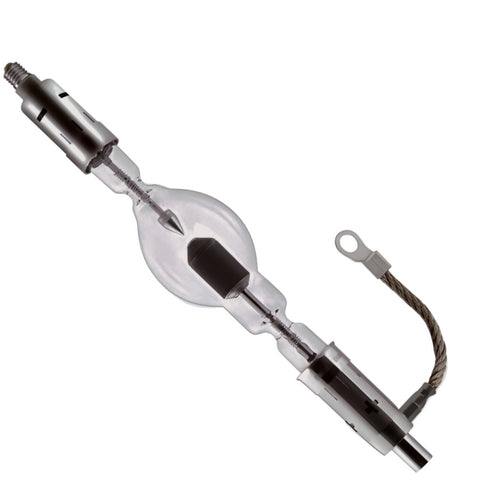

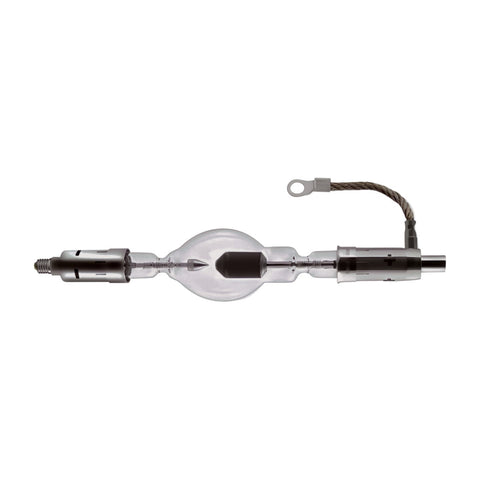

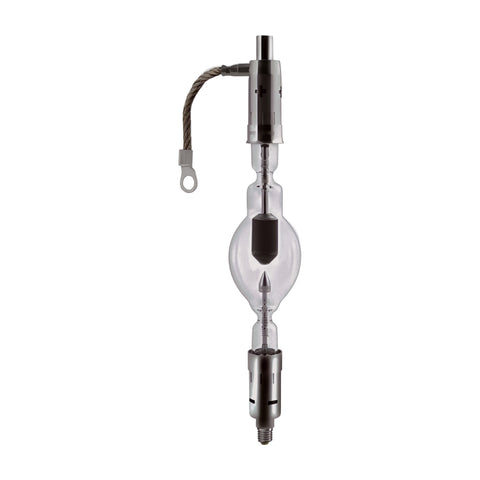

Product Gallery
