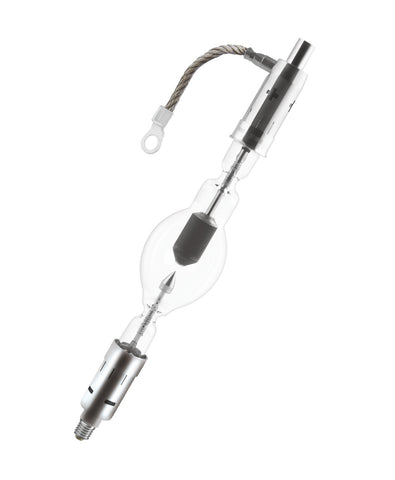

OSRAM XBO 6000W/DHP OFR Xenon Cinema Lamp for Barco, 280000 lm, DC 36V 165A, LCL 170.5mm - 69476
5 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 6000 Watts

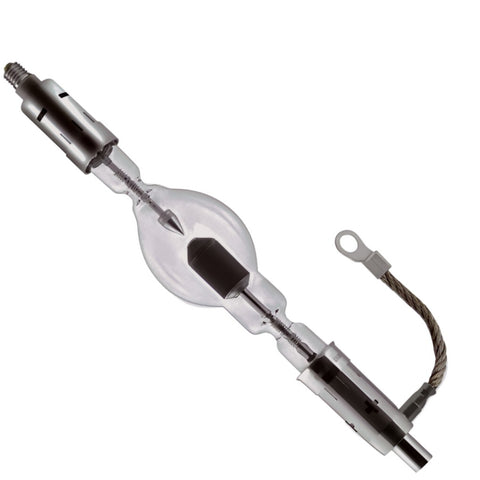

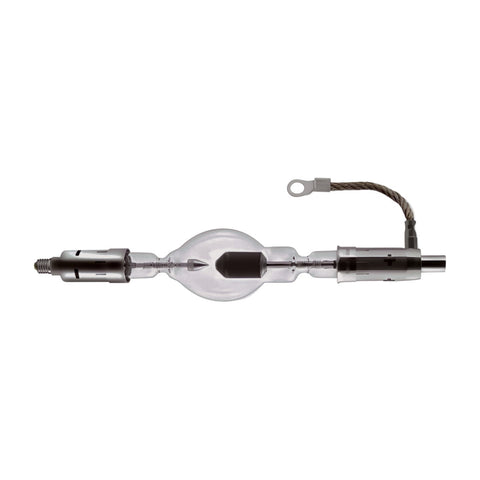

OSRAM XBO 6000W/DHP OFR Xenon Cinema Lamp (69476)
6000W DC xenon short-arc lamp for select Barco digital cinema projectors
Ultra-high-output 6kW XBO lamp delivering 280,000 lm with 170.5mm LCL for large-screen cinema projection.
Extreme Brightness
280,000 lm nominal luminous flux for large-format cinema screens.
280,000 lm nominal luminous flux for large-format cinema screens.
Stable DC Electrical Profile
6000W, 36V, 165A nominal with 131–174A current control range.
6000W, 36V, 165A nominal with 131–174A current control range.
Correct Optical Geometry
170.5 mm LCL and 7.5 mm electrode gap (cold) for proper positioning.
170.5 mm LCL and 7.5 mm electrode gap (cold) for proper positioning.
Booth-Ready Operation
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Fitment Details Included
78 mm diameter, 436 mm length, connector present, 155 mm input cable.
78 mm diameter, 436 mm length, connector present, 155 mm input cable.
| Specifications | |
|---|---|
| Brand / Family | OSRAM XBO |
| Product Number (Americas) | 69476 |
| Product Name (Americas) | XBO 6000W/DHP 1/CS 1/SKU |
| Global Order Reference | XBO 6000 W/DHP OFR |
| Nominal Wattage | 6000 W |
| Nominal Voltage | 36 V |
| Nominal Current | 165 A |
| Current Control Range | 131–174 A |
| Type of Current | DC |
| Nominal Luminous Flux | 280,000 lm |
| Light Center Length (LCL) | 170.5 mm |
| Electrode Gap (cold) | 7.5 mm |
| Base (Anode) | SFaX30-9.5 |
| Base (Cathode) | SFa30-7.9 |
| Diameter | 78.0 mm (2.756 in) |
| Length | 436.0 mm |
| Length w/ base excl. pins/connection | 393.0 mm |
| Cable/Wire Length (input side) | 155 mm |
| Connector Present | Yes |
| Product Weight | 1000 g |
| Burning Position | s15/p15 |
| Cooling | Forced |
| Max Ambient Temp (pinch point) | 230 °C |
| Nominal Lifetime | 650 hr |
| Warranty Hours | 650 hrs |
| Service Warranty Lifetime | 800 hr |
| REACh Primary Article Identifier | 4008321549693 | 4062172030663 | 4052899144026 |
Compatible Barco Projectors (per provided list)
- Barco DP2K-32B
- Barco DP4K-32B
- Barco 32B Projector (w/ Barco Cathode Adapter R8436081)
- Barco 90 Projector
- Barco 100 Projector
- Barco 3000 Projector
Box Contents
- 1 × OSRAM XBO 6000W/DHP OFR Xenon Cinema Lamp (69476)
