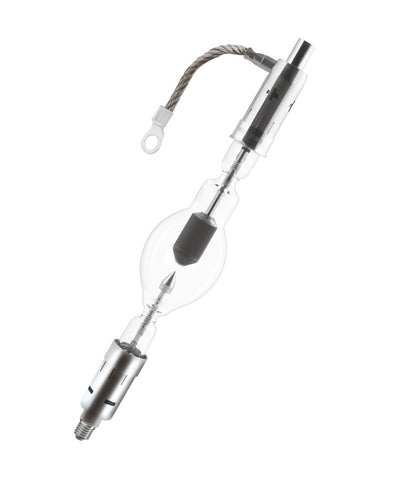

OSRAM XBO 4000W/DHP L OFR Xenon Short-Arc Cinema Lamp for Barco – 4200W, 33V, 1,300 hr, p15/s15 - 69049
5 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 4000 Watts
OSRAM XBO 4000W/DHP L OFR Xenon Short-Arc Cinema Lamp (69049)
Genuine OSRAM high-output cinema lamp for select Barco Digital Cinema projectors
4200W OSRAM XBO xenon short-arc lamp engineered for stable DC operation, forced cooling, and high-brightness Barco cinema projection.
Genuine OSRAM XBO for Barco
OSRAM XBO 4000W/DHP L OFR (69049) engineered for select Barco Digital Cinema projector systems.
OSRAM XBO 4000W/DHP L OFR (69049) engineered for select Barco Digital Cinema projector systems.
Stable DC Electrical Profile
4200W rated 33V / 128A nominal with a 95–137A current control range.
4200W rated 33V / 128A nominal with a 95–137A current control range.
Optical Alignment Geometry
123.0mm LCL and 6.0mm electrode gap (cold) for intended reflector/optics alignment.
123.0mm LCL and 6.0mm electrode gap (cold) for intended reflector/optics alignment.
Forced Cooling + Correct Orientation
Requires forced cooling and p15/s15 burning position for safe, correct operation.
Requires forced cooling and p15/s15 burning position for safe, correct operation.
Service Life for Cinema Use
1,300 hr nominal/warranty life with 1,500 hr service warranty lifetime.
1,300 hr nominal/warranty life with 1,500 hr service warranty lifetime.
| Specifications | |
|---|---|
| Brand | OSRAM |
| Lamp Type | Xenon Short-Arc (Digital Cinema) |
| Model | XBO 4000 W/DHP L OFR |
| Product Number (Americas) | 69049 |
| Global Order Reference | XBO 4000 W/DHP L OFR |
| Nominal Wattage | 4200 W |
| Nominal Voltage | 33 V |
| Nominal Current | 128 A |
| Current Control Range | 95–137 A |
| Type of Current | DC |
| Light Center Length (LCL) | 123.0 mm |
| Electrode Gap (cold) | 6.0 mm |
| Base (Anode) | SFaX27-14x80 |
| Base (Cathode) | SFc27-16/55 |
| Connector | Yes (130 mm input-side cable/wire length) |
| Burning Position | p15/s15 |
| Cooling | Forced |
| Max Permitted Ambient Temp (Pinch Point) | 230 °C |
| Nominal Lifetime | 1,300 hr |
| Warranty Hours | 1,300 hrs |
| Service Warranty Lifetime | 1,500 hr |
| Dimensions | Ø 60.0 mm (2.362 in) x L 345.0 mm (295.0 mm excl. base pins/connection) |
| Product Weight | 645.00 g |
| REACh Primary Article Identifier | 4052899468214 / 4052899235915 / 4052899212879 / 4062172030403 |
Works With / Compatible Barco Projectors
- Barco DP2K-15C
- Barco DP2K-19B
- Barco DP2K-20C
- Barco DP2K-23B
- Barco DP4K-19B
- Barco DP4K-23B
- Barco 15C (with Cathode Adapter R858100)
- Barco 20C (with Cathode Adapter R858100)
- Barco 19B (with Cathode Adapter R865555)
- Barco 23B (with Cathode Adapter R865555)
- Barco 32B (with Cathode Adapter R8436081)
What's in the Box
- OSRAM XBO 4000W/DHP L OFR Xenon Short-Arc Cinema Lamp (69049)
- Connector/cable assembly (130 mm input-side cable length, as configured)
- Protective packaging
- Documentation (as included)
Why Choose Genuine OSRAM XBO for Barco?
- High-output 4200W xenon short-arc lamp engineered for Barco digital cinema projection.
- DC operation with 95–137A current control range for stable brightness and proper ballast control.
- 123.0mm LCL and 6.0mm electrode gap (cold) for intended optical alignment.
- Forced cooling and p15/s15 burning position requirements for safe, correct operation.
- 1,300 hr nominal/warranty life with 1,500 hr service warranty lifetime.

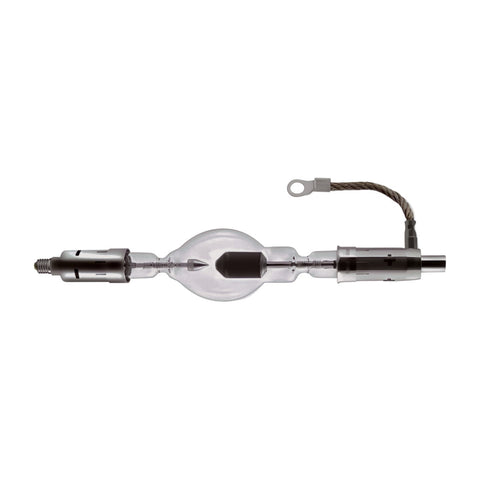

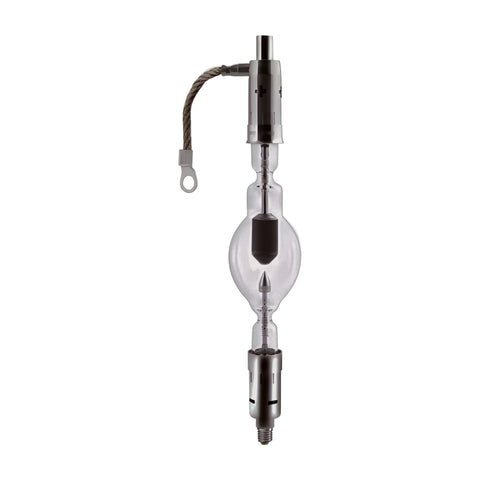

Product Gallery
Please note: Xenon lamps that must be configured or calibrated before shipment cannot be returned.
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the 69049 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
