OSRAM XBO 3000W/DHP OFR Xenon Cinema Lamp for Barco, 135000lm, DC 29V 105A, LCL 123mm - 69480
5 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 3000 Watts

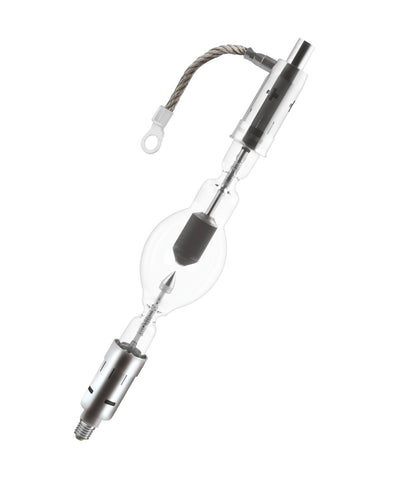

OSRAM XBO 3000W/DHP OFR Xenon Cinema Lamp (69480)
3000W DC xenon short-arc lamp for select Barco digital cinema projectors
High-brightness OSRAM XBO lamp with 135,000 lm nominal luminous flux, engineered for stable DC operation and cinema-grade performance.
High Brightness Output
Nominal luminous flux of 135,000 lm for powerful cinema projection.
Nominal luminous flux of 135,000 lm for powerful cinema projection.
Stable DC Electrical Profile
3000W, 29V, 105A nominal with 77–113A current control range.
3000W, 29V, 105A nominal with 77–113A current control range.
Optical Alignment Geometry
123.0 mm LCL and 4.5 mm electrode gap (cold) support correct focus and alignment.
123.0 mm LCL and 4.5 mm electrode gap (cold) support correct focus and alignment.
Designed for Booth Operation
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Service Life Rating
1500 hr nominal lifetime with 1500 warranty hours (service warranty lifetime 1900 hr).
1500 hr nominal lifetime with 1500 warranty hours (service warranty lifetime 1900 hr).
| Specifications | |
|---|---|
| Brand / Family | OSRAM XBO |
| Product Number (Americas) | 69480 |
| Global Order Reference | XBO 3000 W/DHP OFR |
| Nominal Wattage | 3000 W |
| Nominal Voltage | 29 V |
| Nominal Current | 105 A |
| Current Control Range | 77–113 A |
| Type of Current | DC |
| Nominal Luminous Flux | 135,000 lm |
| Light Center Length (LCL) | 123.0 mm |
| Electrode Gap (cold) | 4.5 mm |
| Base (Anode) | SFaX27-14x80 |
| Base (Cathode) | SFc27-16/55 |
| Diameter | 55.0 mm (2.165 in) |
| Length | 345.0 mm |
| Length w/ base excl. pins/connection | 295.0 mm |
| Cable/Wire Length (input side) | 130 mm |
| Connector Present | Yes |
| Product Weight | 581 g |
| Burning Position | s15/p15 |
| Cooling | Forced |
| Max Ambient Temp (pinch point) | 230 °C |
| Nominal Lifetime | 1500 hr |
| Warranty Hours | 1500 hr |
| Service Warranty Lifetime | 1900 hr |
Compatible Barco Projectors (per provided list)
- Barco DP2K-15C
- Barco DP2K-19B
- Barco DP2K-20C
- Barco DP2K-23B
- Barco DP4K-19B
- Barco DP4K-23B
- Barco 15C (w/ Barco Cathode Adapter R858100)
- Barco 20C (w/ Barco Cathode Adapter R858100)
- Barco 19B (w/ Barco Cathode Adapter R865555)
- Barco 23B (w/ Barco Cathode Adapter R865555)
- Barco 32B (w/ Barco Cathode Adapter R8436081)
- Barco 1500
- Barco 2000
Box Contents
- 1 × OSRAM XBO 3000W/DHP OFR Xenon Cinema Lamp (69480)
