OSRAM XBO 3000W/DHP L OFR Xenon Cinema Lamp for Barco Projectors, DC 29V 103A, LCL 123mm - 69048
5 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 3000 Watts

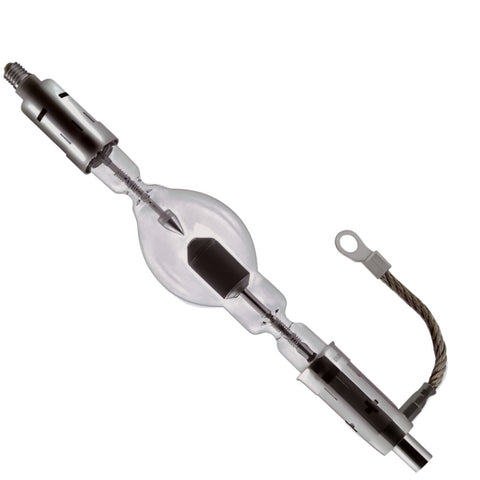

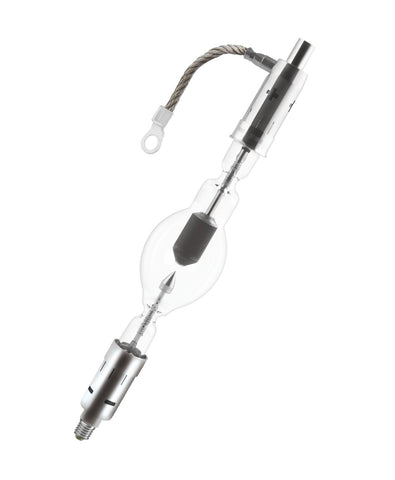

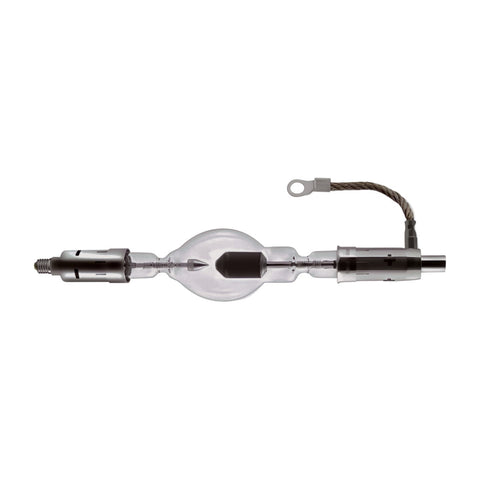

OSRAM XBO 3000W/DHP L OFR Xenon Cinema Lamp (69048)
3000W DC xenon short-arc lamp for select Barco digital cinema projectors
Genuine OSRAM XBO xenon short-arc lamp engineered for stable DC operation, high brightness, and reliable cinema projection performance.
Cinema-Grade Brightness
3000W xenon short-arc design for professional digital cinema projection.
3000W xenon short-arc design for professional digital cinema projection.
Stable DC Electrical Profile
29V / 103A nominal with 76–111A current control range.
29V / 103A nominal with 76–111A current control range.
Optical Alignment Geometry
123.0 mm LCL and 5.0 mm electrode gap (cold) support correct focus and alignment.
123.0 mm LCL and 5.0 mm electrode gap (cold) support correct focus and alignment.
Designed for Booth Operation
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Long Service Interval
1900 hr nominal lifetime with 1900 warranty hours (service warranty lifetime 2100 hr).
1900 hr nominal lifetime with 1900 warranty hours (service warranty lifetime 2100 hr).
| Specifications | |
|---|---|
| Brand / Family | OSRAM XBO |
| Product Number (Americas) | 69048 |
| Global Order Reference | XBO 3000 W/DHP L OFR |
| Nominal Wattage | 3000 W |
| Nominal Voltage | 29 V |
| Nominal Current | 103 A |
| Current Control Range | 76–111 A |
| Type of Current | DC |
| Light Center Length (LCL) | 123.0 mm |
| Electrode Gap (cold) | 5.0 mm |
| Base (Anode) | SFaX27-14x80 |
| Base (Cathode) | SFc27-16/55 |
| Diameter | 60.0 mm (2.362 in) |
| Length | 345.0 mm |
| Length w/ base excl. pins/connection | 295.0 mm |
| Cable/Wire Length (input side) | 130 mm |
| Connector Present | Yes |
| Product Weight | 623 g |
| Burning Position | s15/p15 |
| Cooling | Forced |
| Max Ambient Temp (pinch point) | 230 °C |
| Nominal Lifetime | 1900 hr |
| Warranty Hours | 1900 hr |
| Service Warranty Lifetime | 2100 hr |
Compatible Barco Projectors (per OSRAM listing)
- Barco DP2K-15C
- Barco DP2K-19B
- Barco DP2K-20C
- Barco DP2K-23B
- Barco DP4K-19B
- Barco DP4K-23B
- Barco Digital Cinema 1500
- Barco Digital Cinema 2000
Product Gallery
Please note: Xenon lamps that must be configured or calibrated before shipment cannot be returned.
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the 69048 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
