OSRAM XBO 3000 W/HS XL OFR Xenon Short-Arc Lamp (69479)
For cinema projectors, followspots & searchlights – 3000W, 90,000 cd/cm², XL life
Genuine OSRAM XBO 3000W XL xenon short-arc lamp engineered for high luminance, stable DC operation, and forced-cooled cinema/searchlight systems.
High Luminance Output
90,000 cd/cm² luminance for intense screen brightness and long-throw performance.
90,000 cd/cm² luminance for intense screen brightness and long-throw performance.
XL (Xtreme Life) Platform
Built for demanding professional use with a 2,200-hour nominal/warranty life rating.
Built for demanding professional use with a 2,200-hour nominal/warranty life rating.
Stable DC Electrical Profile
3000W rated 29V / 100A nominal with a 70–110A current control range.
3000W rated 29V / 100A nominal with a 70–110A current control range.
Precise Optical Geometry
145.0mm LCL and 6.0mm electrode gap (cold) for intended optical alignment.
145.0mm LCL and 6.0mm electrode gap (cold) for intended optical alignment.
Forced Cooling + Correct Orientation
Requires forced cooling and s30/p30 burning position for safe, correct operation.
Requires forced cooling and s30/p30 burning position for safe, correct operation.
| Specifications | |
|---|---|
| Brand / Family | OSRAM XBO |
| Model | XBO 3000 W/HS XL OFR |
| Product Number (Americas) | 69479 |
| Global Order Reference | XBO 3000 W/HS XL OFR |
| Nominal Wattage | 3000 W |
| Nominal Voltage | 29 V |
| Nominal Current | 100 A |
| Current Control Range | 70–110 A |
| Luminance | 90,000 cd/cm² |
| Light Center Length (LCL) | 145.0 mm |
| Electrode Gap (cold) | 6.0 mm |
| Base (Anode) | SFaX30-9.5 |
| Base (Cathode) | SFa30-7.9 |
| Connector | Yes |
| Burning Position | s30/p30 |
| Cooling | Forced |
| Max Ambient Temp (Pinch Point) | 230 °C |
| Nominal Lifetime | 2,200 hr |
| Warranty Hours | 2,200 hrs |
| Dimensions | Ø 60.0 mm (2.362 in) x L 342.0 mm (302.0 mm excl. base pins/connection) |
| Product Weight | 585.00 g |
| REACh Primary Article Identifier | 4008321330031 / 4062172152341 / 4062172030311 |
Works With (Examples – Verify Model/Spec)
- NEC Digital Cinema NC1600C
- NEC Digital Cinema NC2000C
- NEC Digital Cinema NC2500S
- NEC Digital Cinema NC3200S
- NEC Digital Cinema NC3240S (4kW)
- NEC Digital Cinema NC3240S (7kW)
- Lycian 1293 X3K
- Space Cannon Illumination 3.0kW
- Syncrolite Entertainment Technology SX3K-2
Replaces / Cross-Reference
- ASL XM3000HS/R
- LTI LTIX-3000W-HS
- Ushio UXL-30SC (5001079)
- Christie Digital CXL-30SC
- Yumex YXL-30SC
- Superior Quartz SX30002
What's in the Box
- OSRAM XBO 3000 W/HS XL OFR Xenon Short-Arc Lamp (69479)
- Protective packaging
- Documentation (as included by manufacturer)
Why Choose OSRAM XBO 3000W/HS XL OFR?
- High luminance (90,000 cd/cm²) for cinema projection, followspots, and searchlights.
- 3000W DC operation with 70–110A current control range for stable performance.
- 145.0mm LCL and 6.0mm electrode gap (cold) for intended optical alignment.
- Forced cooling and s30/p30 burning position requirements for correct operation.
- XL platform with 2,200-hour nominal/warranty life rating.

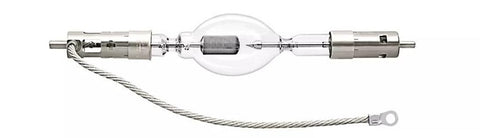

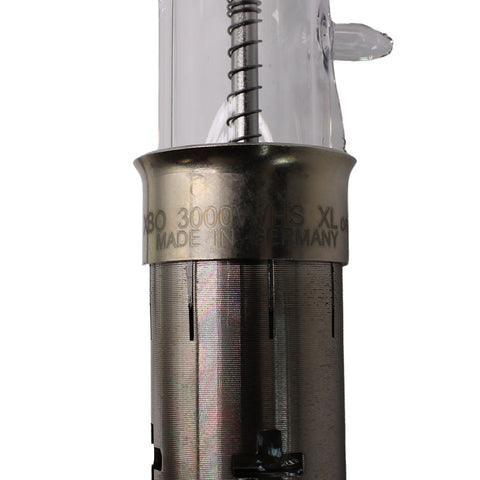

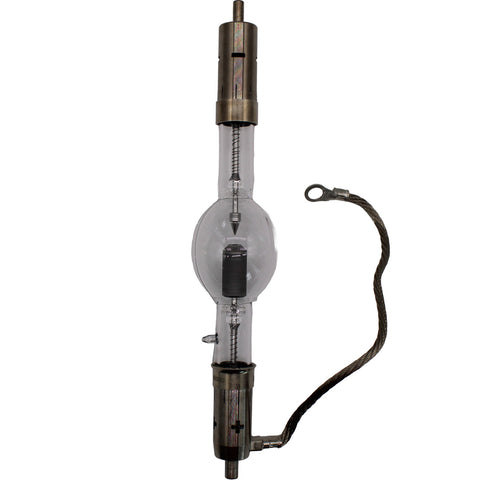

Product Gallery
Please note: Xenon lamps that must be configured or calibrated before shipment cannot be returned.
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the XBO 3000 W/HS XL OFR do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
