OSRAM XBO 2200W/DHP OFR Xenon Cinema Lamp for Barco, 92,000 lm, DC 24V 85A, LCL 123mm - 67484
5 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 2200 Watts

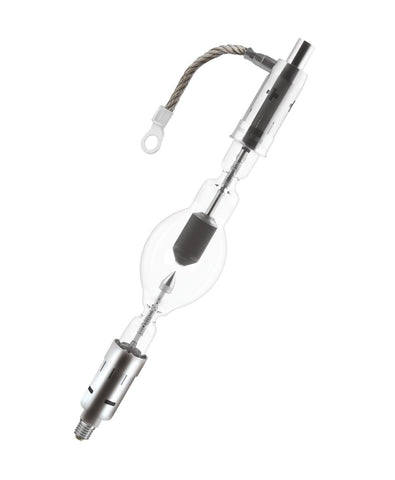

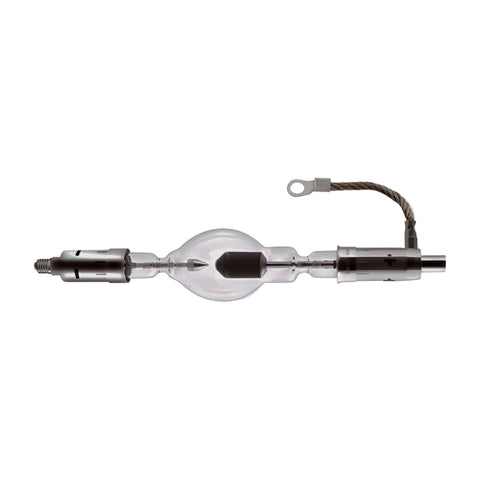

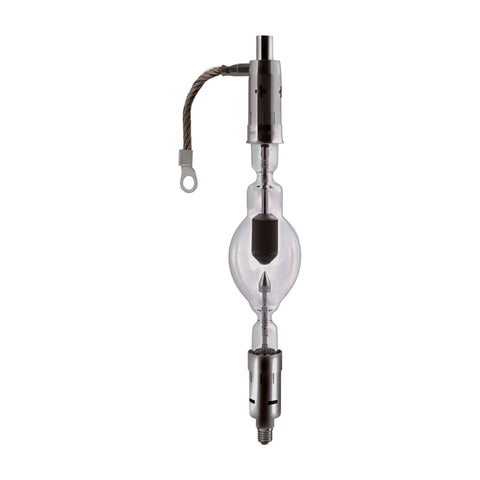

OSRAM XBO 2200W/DHP OFR Xenon Cinema Lamp (67484)
2200W DC xenon short-arc lamp for select Barco digital cinema projectors
High-performance 2200W XENON lamp delivering 92,000 lm nominal luminous flux with stable DC operation for cinema projection.
Bright Cinema Output
92,000 lm nominal luminous flux for strong, consistent projection.
92,000 lm nominal luminous flux for strong, consistent projection.
Stable DC Electrical Profile
2200W, 24V, 85A nominal with 68–95A current control range.
2200W, 24V, 85A nominal with 68–95A current control range.
Correct Optical Geometry
123.0 mm LCL and 3.7 mm electrode gap (cold) for proper alignment.
123.0 mm LCL and 3.7 mm electrode gap (cold) for proper alignment.
Booth-Ready Operation
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Long Service Interval
2400 hr nominal lifetime; 1500 warranty hours; 2000 hr service warranty lifetime.
2400 hr nominal lifetime; 1500 warranty hours; 2000 hr service warranty lifetime.
| Specifications | |
|---|---|
| Brand / Family | OSRAM XBO |
| Product Number (Americas) | 67484 |
| Global Order Reference | XBO 2200 W/DHP OFR |
| Lamp Type | XENON |
| Nominal Wattage | 2200 W |
| Nominal Voltage | 24 V |
| Nominal Current | 85 A |
| Current Control Range | 68–95 A |
| Type of Current | DC |
| Nominal Luminous Flux | 92,000 lm |
| Light Center Length (LCL) | 123.0 mm |
| Electrode Gap (cold) | 3.7 mm |
| Base (Anode) | SFaX27-14x80 |
| Base (Cathode) | SFc27-16/55 |
| Diameter | 52.0 mm (2.047 in) |
| Length | 345.0 mm |
| Length w/ base excl. pins/connection | 295.0 mm |
| Cable/Wire Length (input side) | 130 mm |
| Connector Present | Yes |
| Product Weight | 534 g |
| Burning Position | s15/p15 |
| Cooling | Forced |
| Max Ambient Temp (pinch point) | 230 °C |
| Nominal Lifetime | 2400 hr |
| Warranty Hours | 1500 hrs |
| Service Warranty Lifetime | 2000 hr |
Compatible Barco Digital Cinema Projectors (per provided list)
- Barco DP2K-8S
- Barco DP2K-8Sx
- Barco DP2K-10S
- Barco DP2K-12C
- Barco DP2K-15C
- Barco DP2K-19B
- Barco DP2K-20C
- Barco DP2K-23B
- Barco DP4K-19B
- Barco DP4K-23B
- Barco 10S (w/ Barco Cathode Adapter R858100)
- Barco 12C (w/ Barco Cathode Adapter R858100)
- Barco 15C (w/ Barco Cathode Adapter R858100)
- Barco 20C (w/ Barco Cathode Adapter R858100)
- Barco 19B (w/ Barco Cathode Adapter R865555)
- Barco 23B (w/ Barco Cathode Adapter R865555)
Box Contents
- 1 × OSRAM XBO 2200W/DHP OFR Xenon Cinema Lamp (67484)
