OSRAM XBO 1600W/DHP OFR Xenon Cinema Lamp for Barco, DC 21V 78A, LCL 123mm, 3000h Life - 69840
5 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 1600 Watts

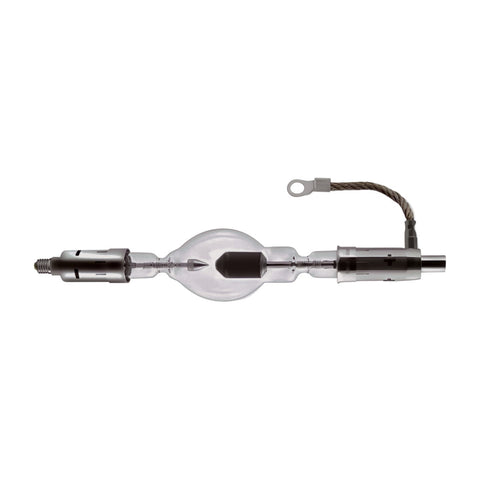

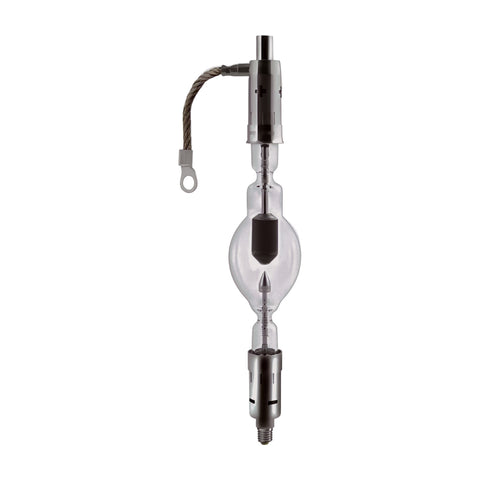

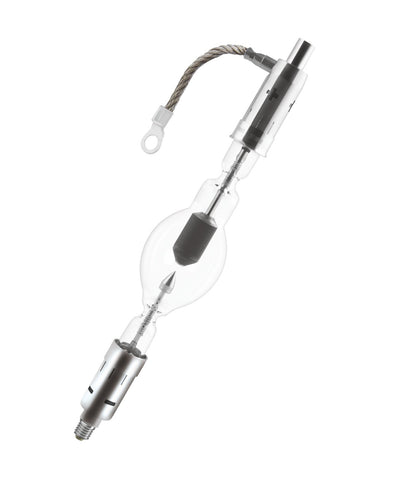

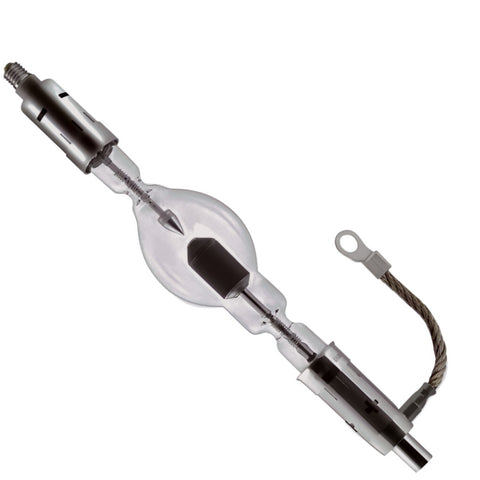

OSRAM XBO 1600W/DHP OFR Xenon Cinema Lamp (69840)
1600W DC xenon short-arc lamp for select Barco digital cinema projectors
Long-life 1600W XBO lamp with 123mm LCL and DC stability for compatible Barco cinema projection systems.
Stable DC Operation
1600W, 21V, 78A nominal with 57–86A current control range.
1600W, 21V, 78A nominal with 57–86A current control range.
Correct Optical Geometry
123.0 mm LCL and 3.5 mm electrode gap (cold) for proper positioning.
123.0 mm LCL and 3.5 mm electrode gap (cold) for proper positioning.
Excellent Lifetime
3000 hr nominal life with 3000 warranty hours (service warranty lifetime 3800 hr).
3000 hr nominal life with 3000 warranty hours (service warranty lifetime 3800 hr).
Booth-Ready Requirements
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Fitment Details Included
46.5 mm diameter, 345 mm length, connector present, 130 mm input cable.
46.5 mm diameter, 345 mm length, connector present, 130 mm input cable.
| Specifications | |
|---|---|
| Brand / Family | OSRAM XBO |
| Product Number (Americas) | 69840 |
| Product Name (Americas) | XBO 1600W/DHP 1/CS 1/SKU |
| Global Order Reference | XBO 1600 W/DHP OFR |
| Nominal Wattage | 1600 W |
| Nominal Voltage | 21 V |
| Nominal Current | 78 A |
| Current Control Range | 57–86 A |
| Type of Current | DC |
| Light Center Length (LCL) | 123.0 mm |
| Electrode Gap (cold) | 3.5 mm |
| Base (Anode) | SFaX30-14 |
| Base (Cathode) | SFc30-16 |
| Diameter | 46.5 mm |
| Length | 345.0 mm |
| Length w/ base excl. pins/connection | 295.0 mm |
| Cable/Wire Length (input side) | 130 mm |
| Connector Present | Yes |
| Product Weight | 485 g |
| Burning Position | s15/p15 |
| Cooling | Forced |
| Max Ambient Temp (pinch point) | 230 °C |
| Nominal Lifetime | 3000 hr |
| Warranty Hours | 3000 hrs |
| Service Warranty Lifetime | 3800 hr |
| REACh Primary Article Identifier | 4052899254831 | 4062172030465 |
Compatible Barco Projectors (per provided list)
- Barco DP2K-8S
- Barco DP2K-8Sx
- Barco DP2K-10S
- Barco DP2K-12C
- Barco DP2K-15C
- Barco DP2K-19B
- Barco DP2K-20C
- Barco DP2K-23B
- Barco DP4K-19B
- Barco DP4K-23B
- Barco 8S Projector (w/ Barco Cathode Adapter R858100)
- Barco 10S Projector (w/ Barco Cathode Adapter R858100)
- Barco 12C Projector (w/ Barco Cathode Adapter R858100)
- Barco 15C Projector (w/ Barco Cathode Adapter R858100)
- Barco 20C Projector (w/ Barco Cathode Adapter R858100)
- Barco 19B Projector (w/ Barco Cathode Adapter R865555)
- Barco 23B Projector (w/ Barco Cathode Adapter R865555)
- Barco Digital Cinema 90
- Barco Digital Cinema 100
- Barco Digital Cinema 3000
Box Contents
- 1 × OSRAM XBO 1600W/DHP OFR Xenon Cinema Lamp (69840)
