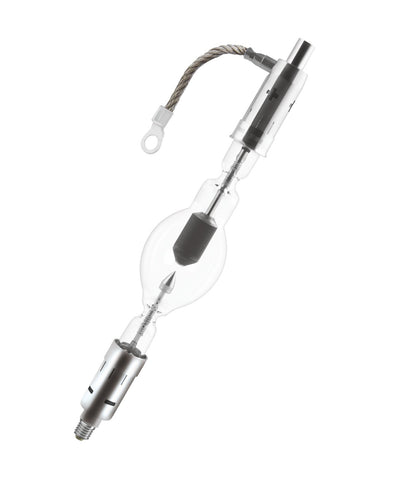

OSRAM XBO 1200W/HPN OFR Xenon Cinema Lamp for NEC, 45,000 lm, DC 22V 57A, LCL 144mm, 3000h - 69079
5 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 1200 Watts
OSRAM XBO 1200W/HPN OFR Xenon Cinema Lamp (69079)
45,000 lm • 1200W DC xenon short-arc lamp for select NEC Digital Cinema projectors
Bright 45,000 lm output with long 3000-hour life and NEC-compatible geometry (LCL 144mm).
Bright Output
45,000 lm nominal luminous flux for strong screen illumination.
45,000 lm nominal luminous flux for strong screen illumination.
Stable DC Operation
1200W, 22V, 57A nominal with 41–63A current control range.
1200W, 22V, 57A nominal with 41–63A current control range.
Correct Optical Geometry
LCL 144.0 mm and 3.5 mm electrode gap (cold) for proper positioning.
LCL 144.0 mm and 3.5 mm electrode gap (cold) for proper positioning.
Long Service Life
3000 hr nominal life with 3000 warranty hours (service warranty lifetime 3500 hr).
3000 hr nominal life with 3000 warranty hours (service warranty lifetime 3500 hr).
Booth-Ready Requirements
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
Forced cooling and s15/p15 burning position (vertical: anode (+) on top).
| Specifications | |
|---|---|
| Brand / Family | OSRAM XBO |
| Product Number (Americas) | 69079 |
| Product Name (Americas) | XBO 1200W/HPN 1/CS 1/SKU |
| Global Order Reference | XBO 1200 W/HPN OFR |
| Nominal Wattage | 1200 W |
| Nominal Voltage | 22 V |
| Nominal Current | 57 A |
| Current Control Range | 41–63 A |
| Type of Current | DC |
| Nominal Luminous Flux | 45,000 lm |
| Light Center Length (LCL) | 144.0 mm |
| Electrode Gap (cold) | 3.5 mm |
| Base (Anode) | SFaX30-9.5 |
| Base (Cathode) | SFa30-20 |
| Diameter | 46.5 mm (1.594 in) |
| Length | 345.0 mm |
| Length w/ base excl. pins/connection | 308.0 mm |
| Cable/Wire Length (input side) | 235 mm |
| Connector Present | Yes |
| Product Weight | 543 g |
| Burning Position | s15/p15 |
| Cooling | Forced |
| Max Ambient Temp (pinch point) | 230 °C |
| Nominal Lifetime | 3000 hr |
| Warranty Hours | 3000 hrs |
| Service Warranty Lifetime | 3500 hr |
| REACh Primary Article Identifier | 4008321741547 | 4062172030496 |
Compatible NEC Projectors (per provided list)
- NEC Digital Cinema 1200C
- NEC Digital Cinema 1600C
- NEC Digital Cinema 2000C
- NEC Digital Cinema 2500S
- NEC Digital Cinema 3200S
- NEC Digital Cinema 3240S
Box Contents
- 1 × OSRAM XBO 1200W/HPN OFR Xenon Cinema Lamp (69079)

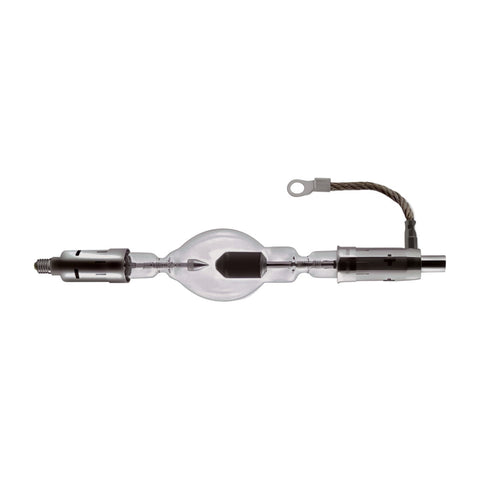

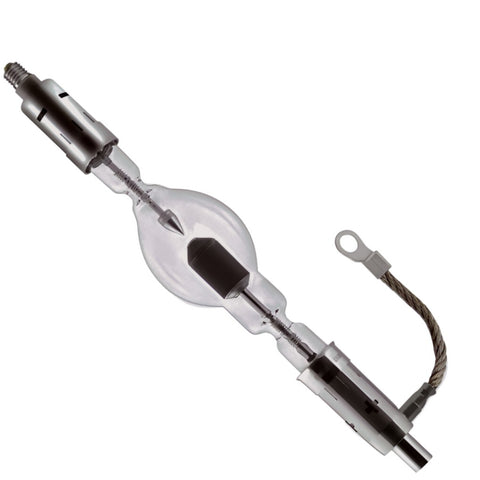

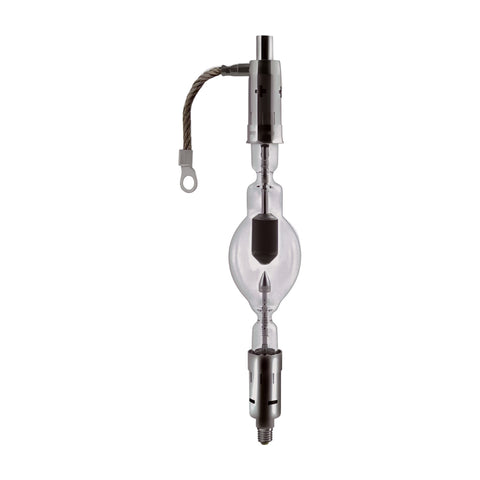

Product Gallery
