Philips MSD Platinum 20RB Stage & Touring Lamp – 470W, 22,400 lm, 8000K, Dimmable - 323741
94 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Important Specs
- 23000 Lumens
- 1500 Hours
- 470 Watts
Philips MSD Platinum 20RB Stage & Touring Lamp (323741) – 470W, 22,400 lm, 8000K, Dimmable
High-output Platinum 20RB performance—22,400 lumens at 8000K with universal positioning and dimmable control for pro beam/spot & hybrid fixtures.
Extreme Output
22,400 lumens for intense beams and strong throw in professional moving head fixtures.
22,400 lumens for intense beams and strong throw in professional moving head fixtures.
Crisp, Cool White Light
8000K color temperature for clean, punchy looks on stage and in venues.
8000K color temperature for clean, punchy looks on stage and in venues.
Compact Arc for Sharp Projection
1.2mm arc length supports crisp projection, sharp beams, and clean optical performance.
1.2mm arc length supports crisp projection, sharp beams, and clean optical performance.
Efficient for Its Class
47 lm/W rated luminous efficacy helps deliver high output with strong performance.
47 lm/W rated luminous efficacy helps deliver high output with strong performance.
Flexible Operation
Universal operating position plus dimmable performance for modern touring rigs and programming.
Universal operating position plus dimmable performance for modern touring rigs and programming.
| Specifications | |
|---|---|
| Lamp Type | MSD Platinum (short-arc discharge) |
| Model / Part Number | MSD Platinum 20RB / 323741 |
| Power Consumption | 470 W |
| Luminous Flux | 22,400 lm |
| Luminous Efficacy (rated) | 47 lm/W (nom) |
| Correlated Color Temperature (CCT) | 8000 K (nom) |
| Chromaticity (x, y) | x = 296 (nom), y = 298 (nom) |
| Arc Length | 1.2 mm (nom) |
| Operating Position | Universal (Any / U) |
| Life to 50% Failures | 1,500 hour(s) (nom) |
| Dimmable | Yes |
| Order Product Name | MSD Platinum 20 RB 1CT/8 |
| Full Product Code | 871869668420700 |
| Order Code | 323741 |
| Material Nr. (12NC) | 928495205314 |
| Quantity Per Pack | 1 |
| EAN/UPC | 8718696684207 |
| Cap-Base | - |
Works With / Compatible Fixtures
This bulb works in many applications including the following:
- Acme XP-20R BEAM
- Acme XP-470 BSW
- Acme XP-20R BSW
- Clay Paky Mythos
- Clay Paky Super Sharpy
- Elation Platinum FLX
- Terbly G12WB
- Terbly G12 Hybrid MKII
- Jolly X-5 Couple
- FINEART FINE 470BEAM
- FINEART FINE 470BSW
What's in the Box
- Philips MSD Platinum 20RB Stage & Touring Lamp (323741)
- Protective packaging
- Product documentation (as included by manufacturer)
Why Choose the Philips MSD Platinum 20RB?
- 22,400 lumens of high-intensity output for powerful beams and long throw.
- 8000K color temperature for clean, crisp looks in Broadway and touring applications.
- 1.2mm arc length supports sharp projection and clean optics performance.
- Universal operating position plus dimmable performance for flexible programming.
- 1,500-hour life to 50% failures helps reduce downtime and maintenance.

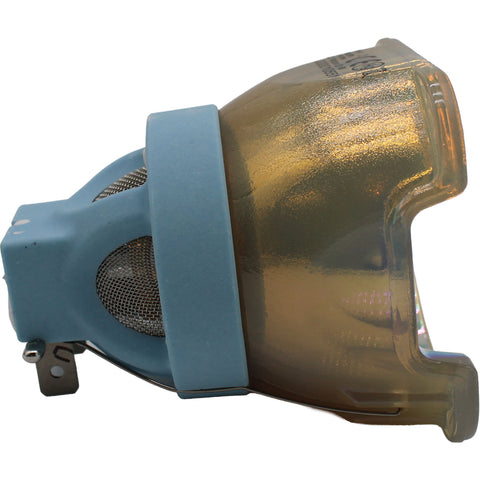

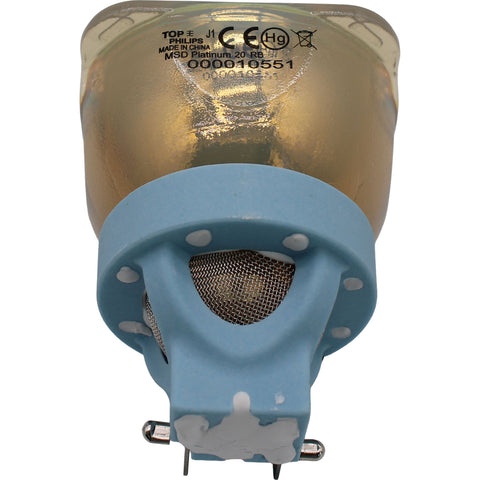

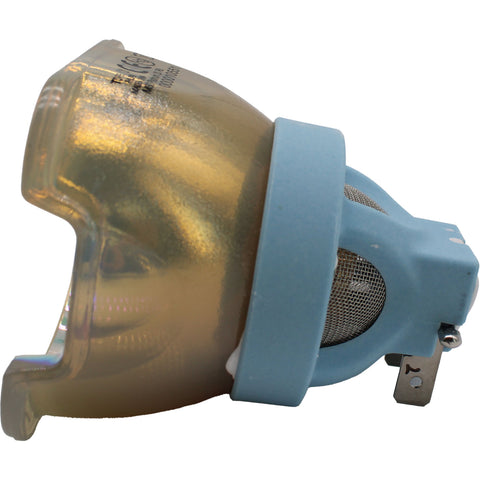

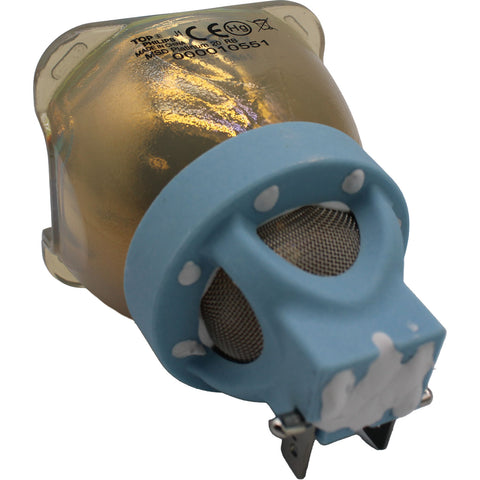

Product Gallery
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the 323741 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
